Starting Procedure For On-Board Diagnostic Test Mode - Navigation System





STARTING PROCEDURE FOR ON-BOARD DIAGNOSTIC TEST MODE [CAR-NAVIGATION SYSTEM]

NOTE:
- All DTCs displayed in the on-board diagnostic test mode should be entered in the Audio Repair Order Form.

1. Turn ignition switch to ACC or ON position.

2. Turn the audio power to OFF.

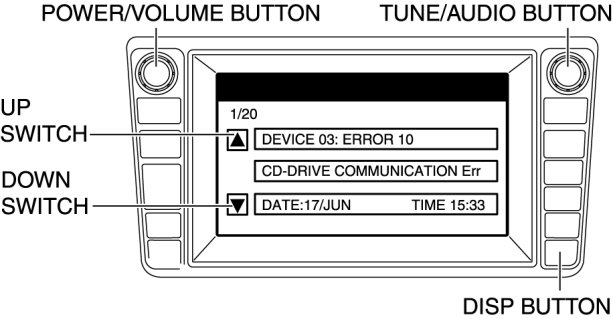

3. While pressing the POWER/VOLUME button, simultaneously press the TUNE/AUDIO button and the DISP button for 1 s or more.






NOTE:
- If several DTCs are in the memory, they can be displayed using the UP/DOWN switch.

4. To stop the on-board diagnostic test mode, turn the ignition switch to the LOCK position.
