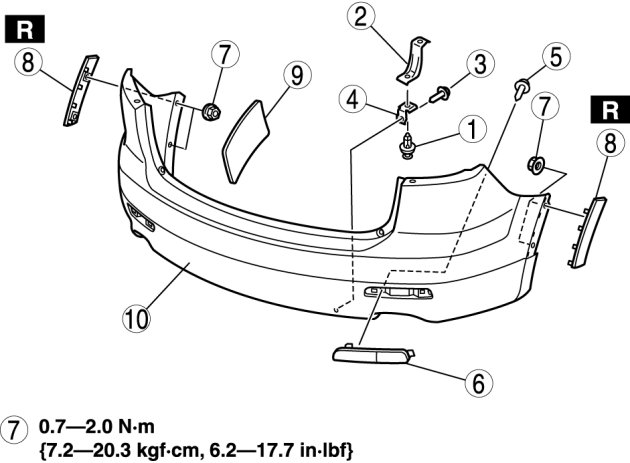

REAR BUMPER DISASSEMBLY/ASSEMBLY

1. Disassemble in the order indicated in the table.

2. Assemble in the reverse order of disassembly.

Reflector Removal Note

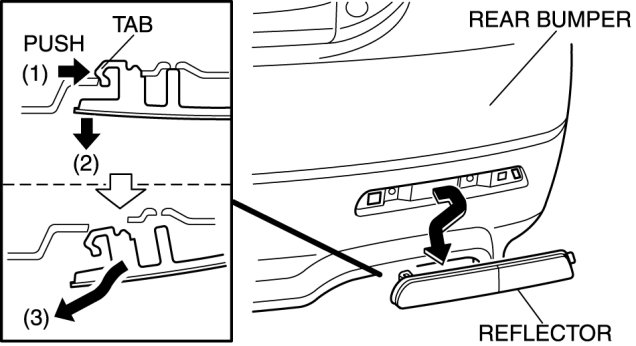

1. Pull off the reflector from the rear bumper in the direction and in the order as shown by the arrows.

Rear Over Fender Lower Assembly Note

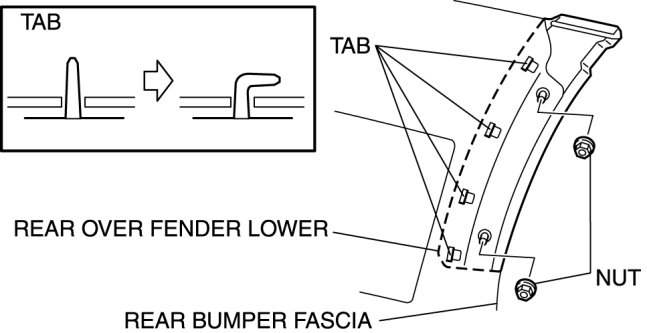

1. Attach the rear over fender lower to the rear bumper fascia with nuts.

2. Use a soldering copper and thermally deform the tab in order to fasten the stiffening rib.
