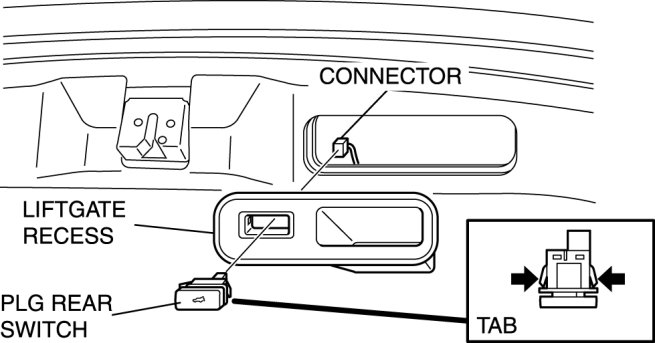

Power Liftgate (PLG) Rear Switch Removal/Installation
POWER LIFTGATE (PLG) REAR SWITCH REMOVAL/INSTALLATION 1.
Disconnect the negative battery cable.
2.
Remove the liftgate recess.
3.
Disconnect the connector from the PLG rear switch.
4.
Remove the PLG rear switch from the recess.
5.
Install in the reverse order of removal.
