Liftgate Outer Handle Switch Inspection

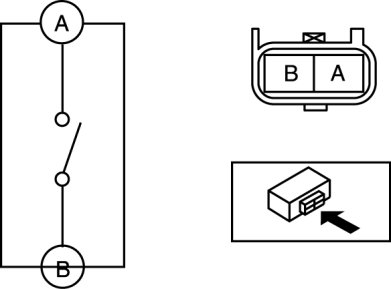

LIFTGATE OUTER HANDLE SWITCH INSPECTION 1.

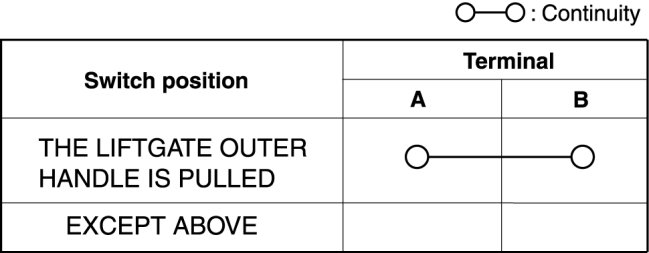

Verify that the continuity between the liftgate outer handle switch terminals is as indicated in the table.
-
If not as indicated in the table, replace the liftgate outer handle.
Liftgate Outer Handle Removal/Installation
