Power Liftgate (PLG) Front Switch Inspection

POWER LIFTGATE (PLG) FRONT SWITCH INSPECTION

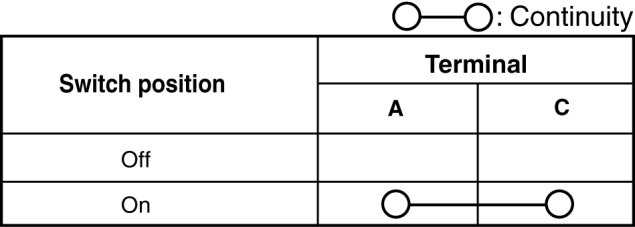

1. Verify that the continuity between the PLG front switch terminals is as indicated in the table.

- If not as indicated in the table, replace the PLG front switch.

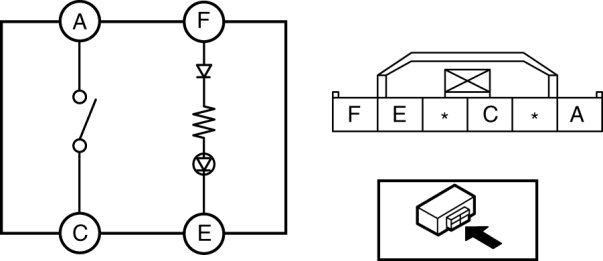

2. Apply battery voltage to PLG front switch terminal A, and connect terminal B to ground.

3. Verify that the LED illuminates.

- If there is any malfunction, replace the PLG front switch.
