Brake Master Cylinder: Service and Repair

MASTER CYLINDER REMOVAL/INSTALLATION

1. Remove the battery and battery tray. Removal and Replacement

2. Remove the resonance chamber. Service and Repair

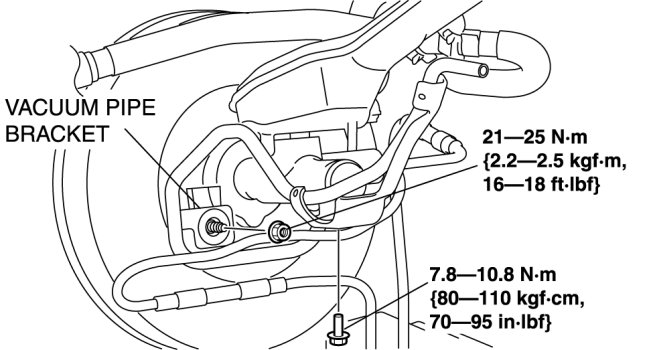

3. Remove the bolt and nut as shown in the figure, and move the vacuum pipe bracket.

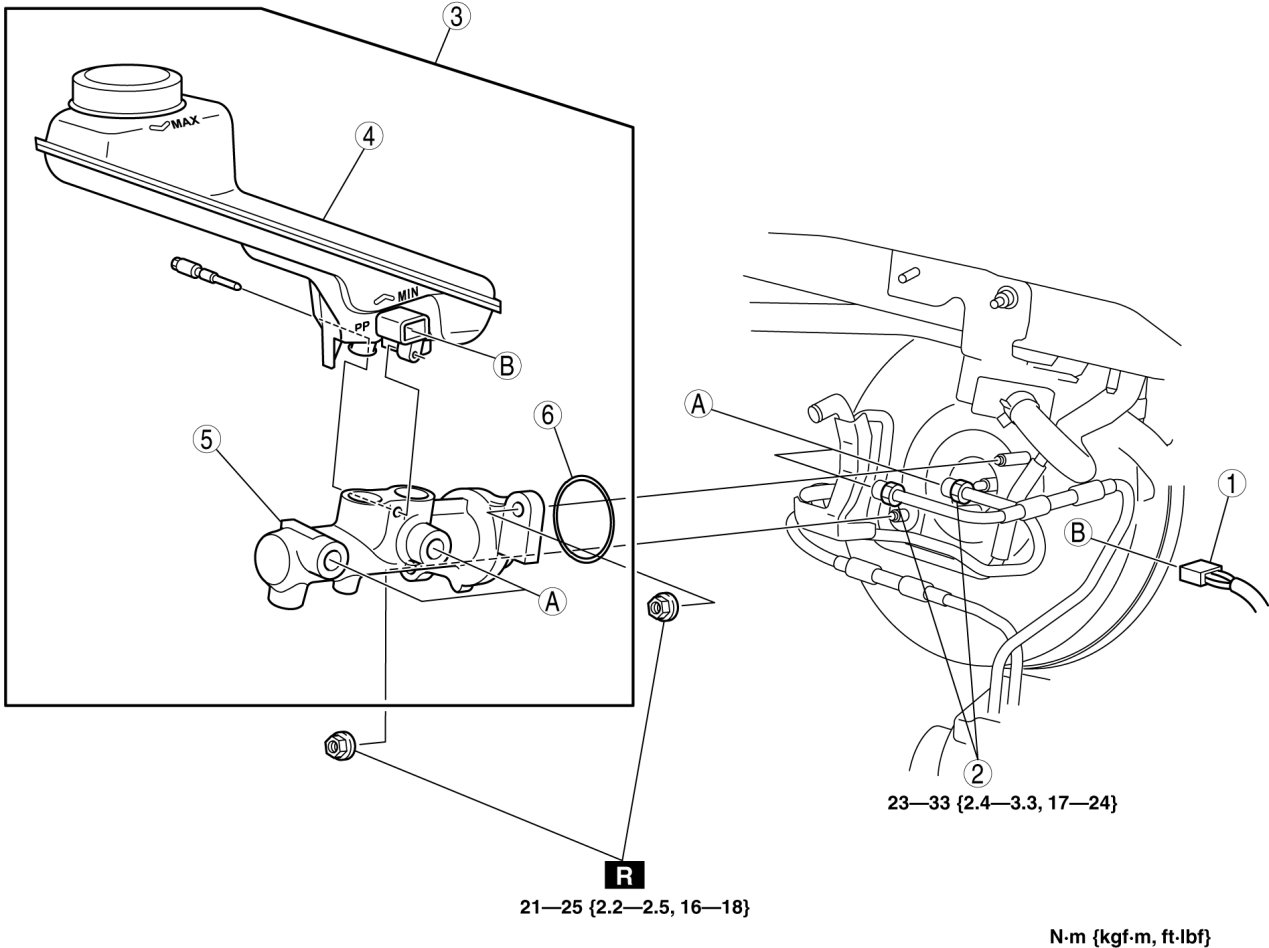

4. Remove in the order indicated in the table.

5. Install in the reverse order of removal.

6. After installation, add brake fluid, bleed the air, and inspect for fluid leakage. Air Bleeding
