Rear Evaporator Temperature Sensor Inspection
REAR EVAPORATOR TEMPERATURE SENSOR INSPECTION 1.
Measure the temperature at the blower inlet.
2.
Measure the resistance between the rear evaporator temperature sensor terminals.
-

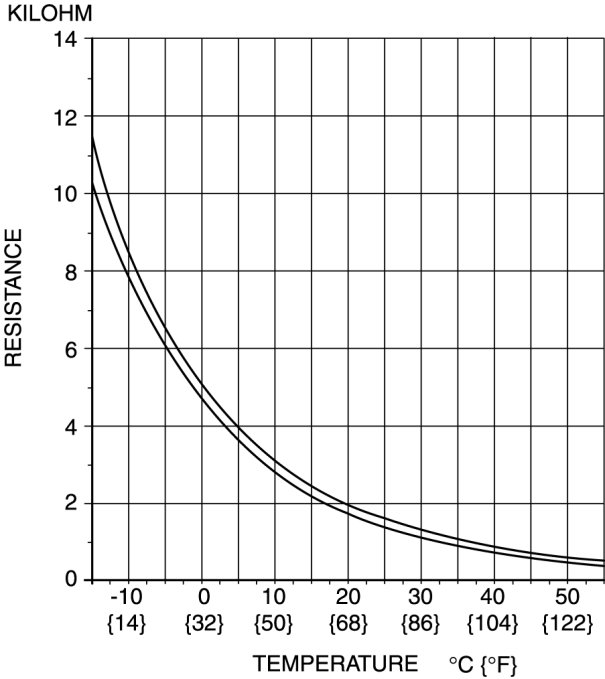

If the resistance is not as shown in the graph, replace the rear evaporator temperature sensor.
