Lateral Stabilizer Rod: Service and Repair

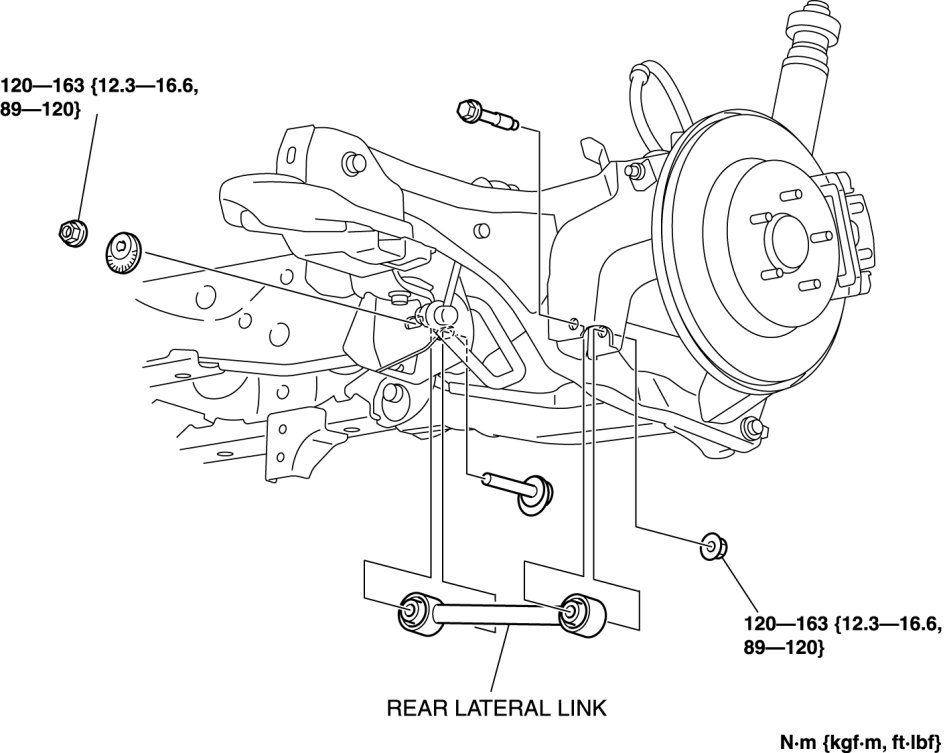

REAR LATERAL LINK REMOVAL/INSTALLATION 1.
Mark the adjusting cam bolt and cam plate of the rear lateral link.
2.
Jack up the rear
suspension with unloaded condition.
3.
Remove the rear lateral link.
4.
Install the rear lateral link by aligning it with the mark placed during removal.
5.
Inspect for rear wheel alignment, and adjust it as necessary.
Rear Wheel Alignment
