Front Side Trim Removal/Installation

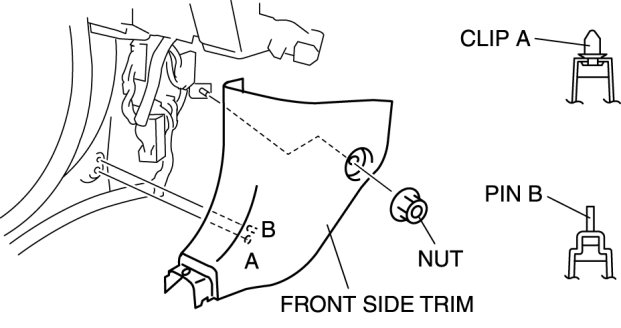

FRONT SIDE TRIM REMOVAL/INSTALLATION 1.
Remove the front
scuff plate inner.
Front Scuff Plate Removal/Installation 2.
Partially peel back the seaming welt.
3.
Remove the nut.
4.
Pull the front side trim upward, then detach clip A, pin B.
5.
Remove the front side trim.
6.
Install in the reverse order of removal.
