Side Panel Removal/Installation

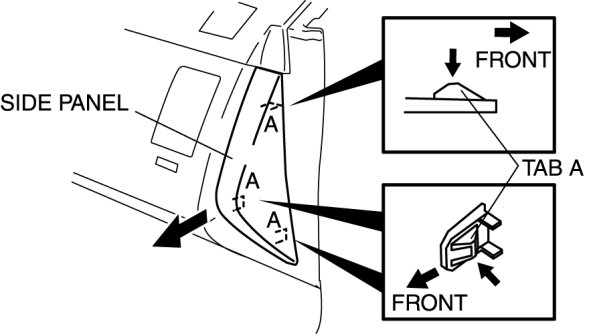

SIDE PANEL REMOVAL/INSTALLATION 1.
Remove the
glove compartment service hole cover.
Service and Repair 2.
Insert fingers into the
glove compartment service hole and detach the tabs A.
3.
Remove the side panel in the direction of the arrow.
4.
Install in the reverse order of removal.
