Auxiliary Input / Output Jack: Testing and Inspection





AUXILIARY JACK INSPECTION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Remove the following parts:
a. Console Console Removal/Installation

b. Side wall Side Wall Removal/Installation

c. Console panel Console Panel Removal/Installation

d. Auxiliary jack Service and Repair

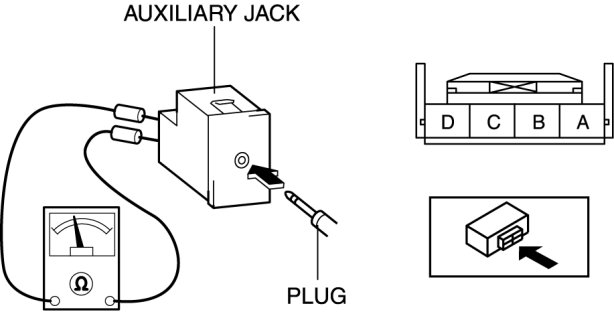

4. Connect a commercially-available nonresistant plug to the auxiliary jack.

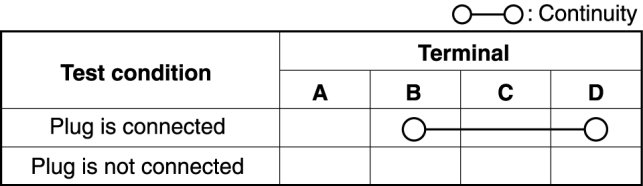

5. Verify that the continuity between the auxiliary jack terminals is as indicated in the table.






- If not as indicated in the table, replace the auxiliary jack.
