Request Switch Removal/Installation





REQUEST SWITCH REMOVAL/INSTALLATION

Driver-side/passenger-side

1. Disconnect the negative battery cable. Removal and Replacement

2. Remove the door trim. Door Trim Removal/Installation

3. Remove the outer handle. Service and Repair

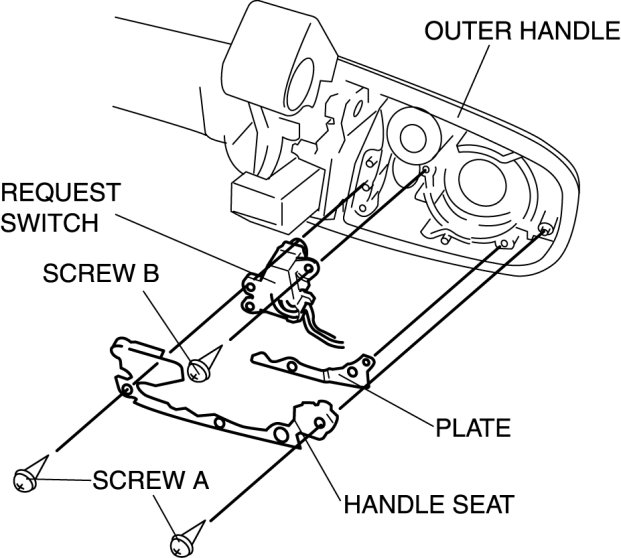

4. Remove the screws A, then remove the handle seat and plate.

5. Remove screw B, then remove the request switch.






6. Install in the reverse order of removal.

Trunk Lid

1. Disconnect the negative battery cable. Removal and Replacement

2. Open the trunk lid.

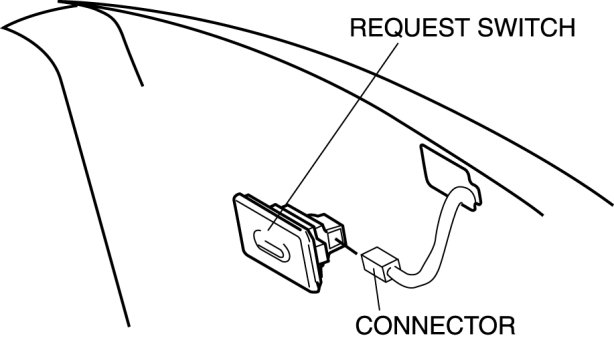

3. Remove the request switch.






4. Install in the reverse order of removal.
