Convertible Top Position Sensor / Switch: Testing and Inspection
POWER RETRACTABLE HARDTOP LIMIT SWITCH INSPECTION 1.

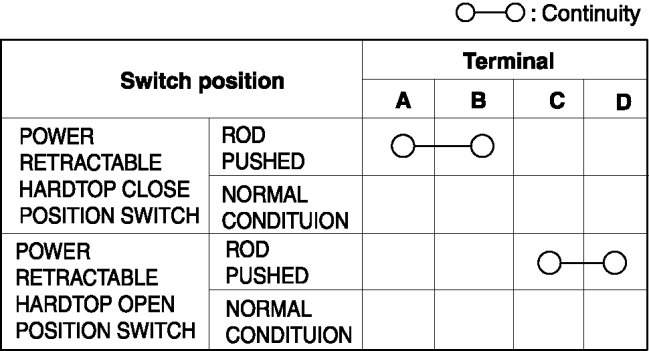

Verify that the continuity between the power retractable hardtop limit switch terminals is as indicated in the table.
1
If not as indicated in the table, replace the roof motor link (RH). (The power retractable hardtop limit switch is integrated with the roof motor link (RH).)
