Trunk Light Bulb: Service and Repair

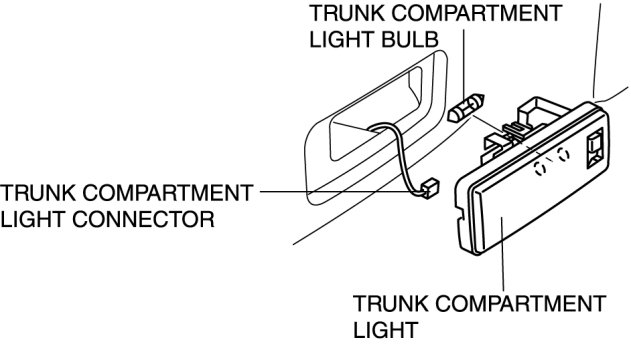

TRUNK COMPARTMENT LIGHT BULB REMOVAL/INSTALLATION

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

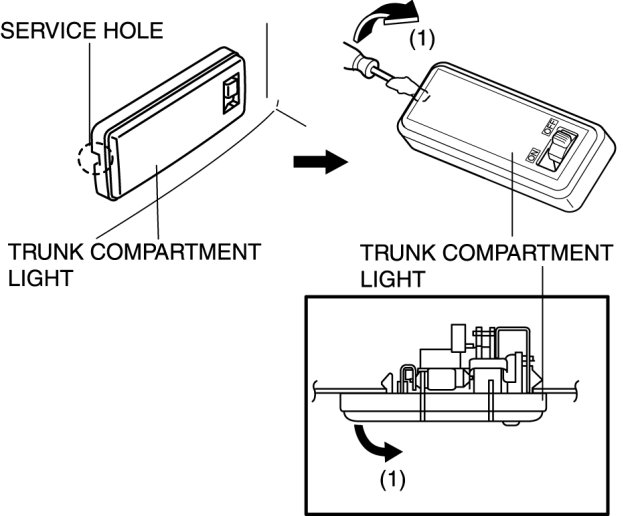

3. Insert a tape-wrapped fastener remover into the service hole and pry with the screwdriver in the direction shown by the arrow (1) to remove the trunk compartment light.






4. Disconnect the trunk compartment light connector.






5. Remove the trunk compartment light bulb.

6. Install in the reverse order of removal.
