Trunk / Liftgate Relay: Service and Repair

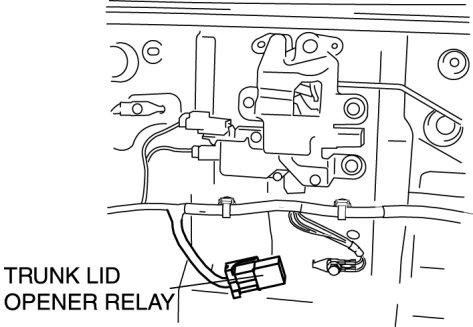

TRUNK LID OPENER RELAY REMOVAL/INSTALLATION 1.
Remove the battery cover.
2.
Disconnect the negative battery cable.
Removal and Replacement 3.
Remove the trunk end trim.
Service and Repair 4.
Remove the trunk lid opener relay.
5.
Install in the reverse order of removal.
