Steering Mounted Controls Assembly: Testing and Inspection
AUDIO CONTROL SWITCH INSPECTION 1.

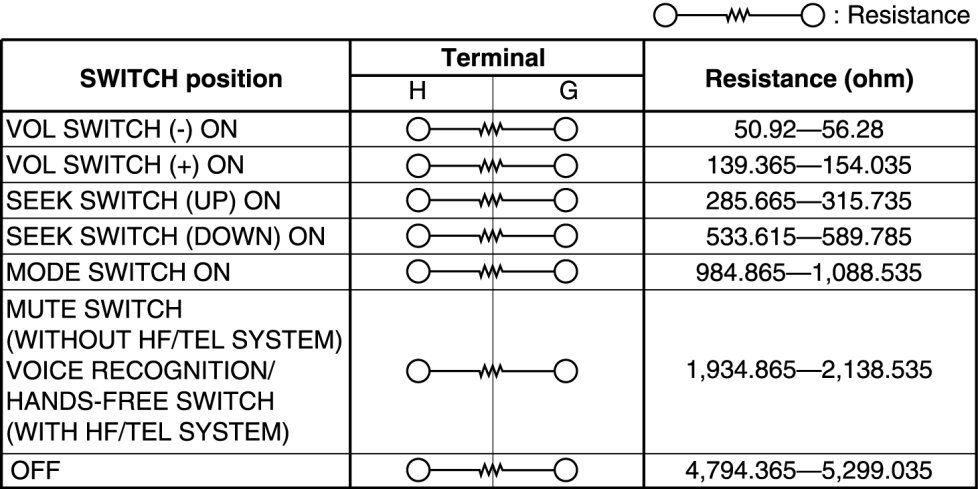

Verify the resistance and continuity between the audio control switch terminals.
-
If the resistance and continuity are not as indicated in the tables, replace the audio control switch.
2.
Verify that the LED illuminates.
-
If the LED does not illuminate, replace the audio control switch.
