Transmission Speed Sensor: Service and Repair

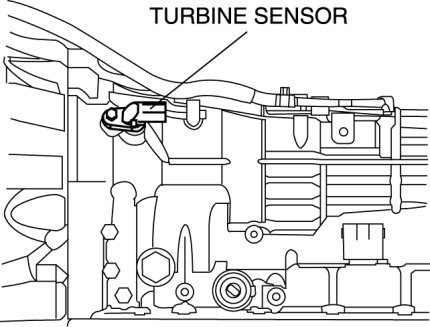

TURBINE SENSOR REMOVAL/INSTALLATION [SJ6A-EL]

CAUTION:
- Water or foreign material entering the connector can cause poor connections or corrosion. Be sure that water or foreign material do not enter the connector when disconnecting it.
- Do not damage the turbine sensor.

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the turbine sensor connector.

4. Remove the turbine sensor.






5. Install the turbine sensor.

Tightening torque
- 3.9-6.9 Nm {40-70 kgf-cm, 35-60 in-lbf}

6. Connect the turbine sensor connector.

7. Connect the negative battery cable. Removal and Replacement

8. Install the battery cover.
