Transmission Speed Sensor: Testing and Inspection





TURBINE SENSOR INSPECTION [SJ6A-EL]

CAUTION:
- Water or foreign material entering the connector can cause poor connections or corrosion. Be sure that water or foreign material do not enter the connector when disconnecting it.

1. Remove the battery cover.

2. Disconnect the negative battery cable. Removal and Replacement

3. Disconnect the turbine sensor connector.






CAUTION:
- Do not apply a shock in the turbine sensor.
- Do not damage the terminals.

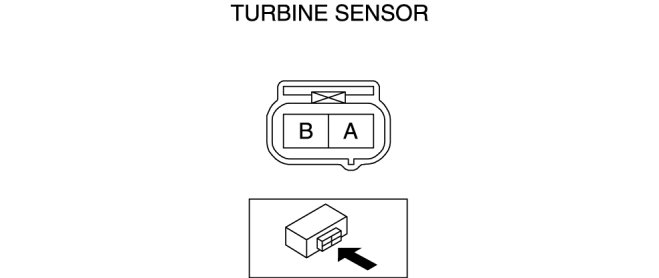

4. Measure the resistance between the turbine sensor terminals.






- If there is any malfunction, replace the turbine sensor. Service and Repair

Turbine sensor resistance
- 560-680 ohm

5. Connect the turbine sensor connector.

6. Connect the negative battery cable. Removal and Replacement

7. Install the battery cover.
