Windshield Washer Hose: Service and Repair

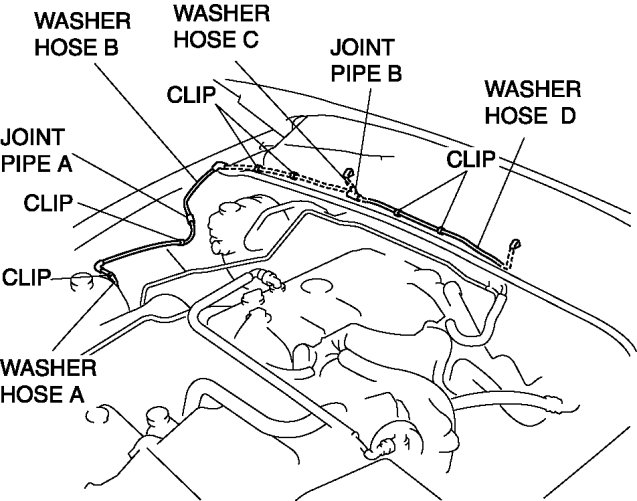

WASHER HOSE REMOVAL/INSTALLATION

1. Remove the wiper arm and blade. Service and Repair

2. Disconnect joint pipe A, then remove washer hose A from clips.






3. Remove the cowl grille. Cowl Grille Removal/Installation

4. Remove clip.

5. Disconnect joint pipe B, then remove washer hose B.

6. Disconnect washer hose C from the washer nozzle, then remove washer hose C.

7. Disconnect joint pipe B, then remove washer hose D from clips.

8. Disconnect washer hose D from the washer nozzle, then remove washer hose D.

9. Install in the reverse order of removal.
