Windshield Washer Spray Nozzle: Service and Repair
WASHER NOZZLE REMOVAL/INSTALLATION 1.
Remove the cowl grille.
Cowl Grille Removal/Installation 2.
Remove the washer hose from the washer nozzle.
3.

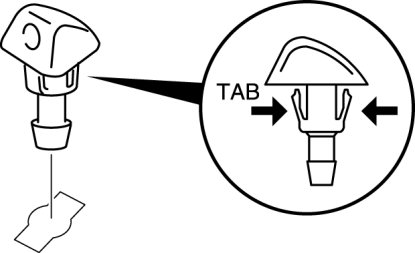

Squeeze the tabs of the washer nozzle.
4.
Pull the washer nozzle out to remove it.
5.
Install in the reverse order of removal.
