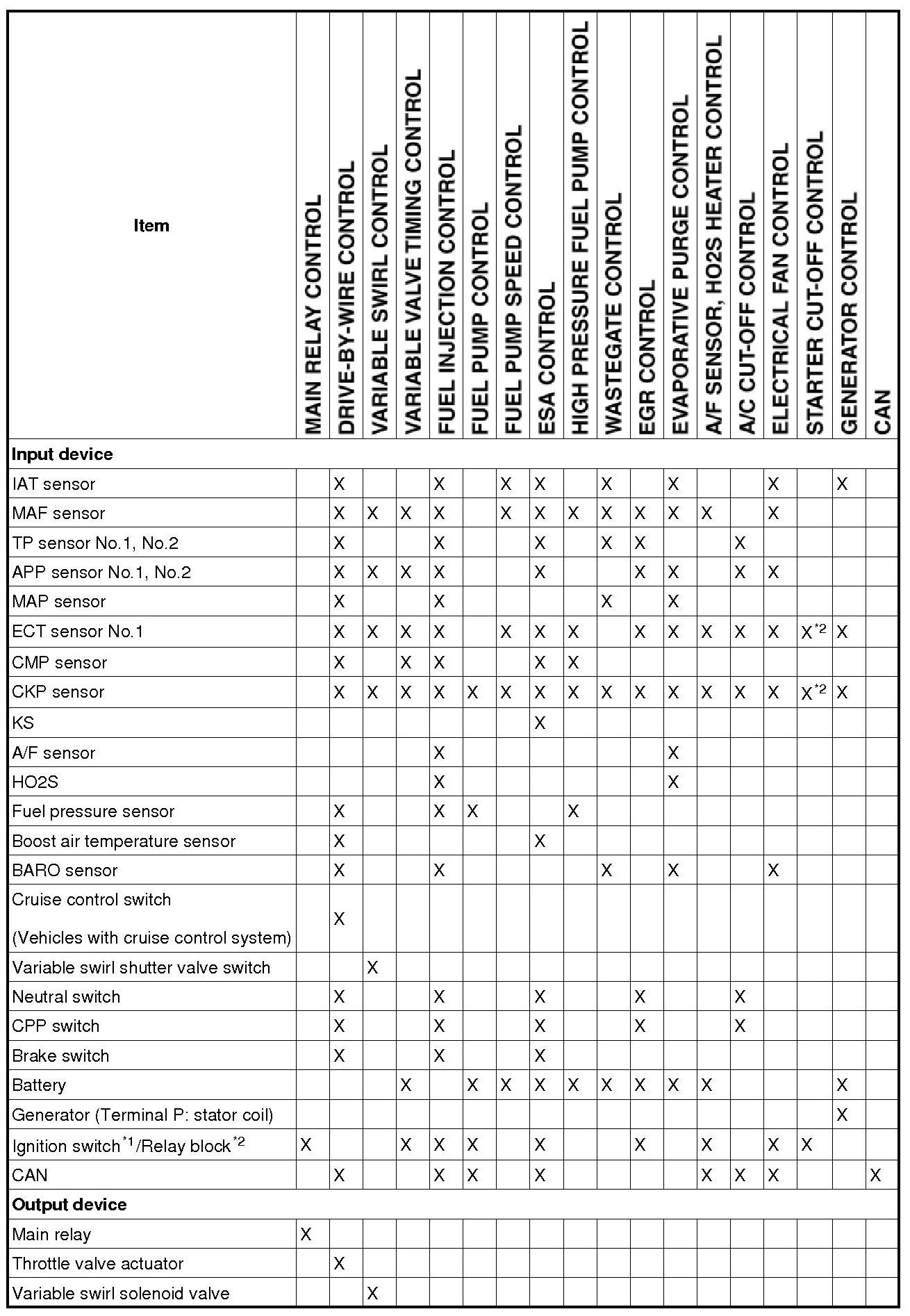

Monitoring System And Control System Device Relationship Chart

MONITORING SYSTEM AND CONTROL SYSTEM DEVICE RELATIONSHIP CHART [MZR 2.3 DISI Turbo]
X: Applied

*1
Vehicles without advanced keyless entry and push button start system
*2
Vehicles with advanced keyless entry and push button start system
