Windshield Washer Motor: Testing and Inspection





WASHER MOTOR INSPECTION

1. Disconnect the negative battery cable. Removal and Replacement Removal and Replacement Removal and Replacement

2. Remove the front mudguard (RH). Service and Repair

3. Disconnect the washer motor connector.

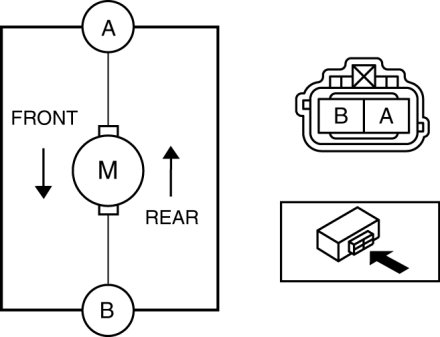

4. After connecting washer motor terminal A to the positive battery terminal, and terminal B to the negative battery terminal, verify that washer fluid flows to the windshield washer hose.






- If there is any malfunction, replace the washer motor.

5. After connecting washer motor terminal B to the positive battery terminal, and terminal A to the negative battery terminal, verify that washer fluid flows to the rear washer hose.(5HB)

- If there is any malfunction, replace the washer motor.
