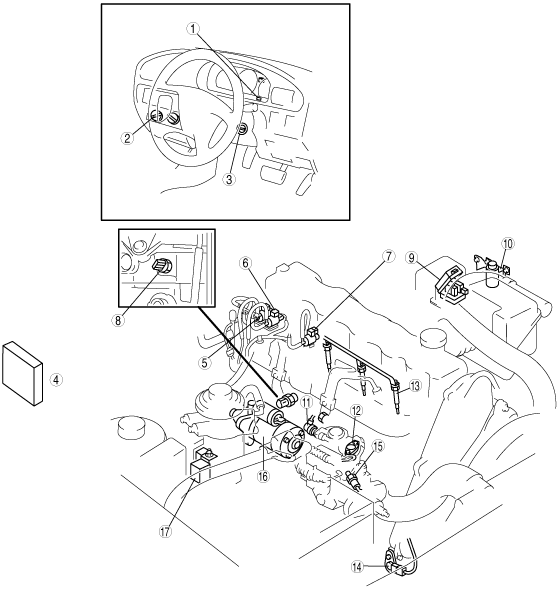

CONTROL SYSTEM LOCATION INDEX [WLT-1, WLT-2]

id014096804100

absggw00000426

1	Glow indicator light
2	Temperature control dial
3	Engine switch
4	PCM (See PCM REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See PCM INSPECTION [WLT-1, WLT-2].)
5	FICD solenoid valve No.1
6	FICD solenoid valve No.2
7	EGR solenoid valve (WLT-2)
8	ECT sensor (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [WLT-1, WLT-2].)
9	DLC
10	A/C relay
11	TCV (WLT-2)
12	Control lever position sensor (WLT-2) (See CONTROL LEVER POSITION SENSOR INSPECTION [WLT-1, WLT-2].)
13	Glow plug
14	CKP sensor (See CRANKSHAFT POSITION (CKP) SENSOR REMOVAL/INSTALLATION [WLT-1, WLT-2].) (See CRANKSHAFT POSITION (CKP) SENSOR INSPECTION [WLT-1, WLT-2].)
15	Idle switch (WLT-2) (See IDLE SWITCH INSPECTION [WLT-1, WLT-2].)
16	Starter
17	Glow plug relay
