GLASS/WINDOWS/MIRRORS LOCATION INDEX

id091200800100

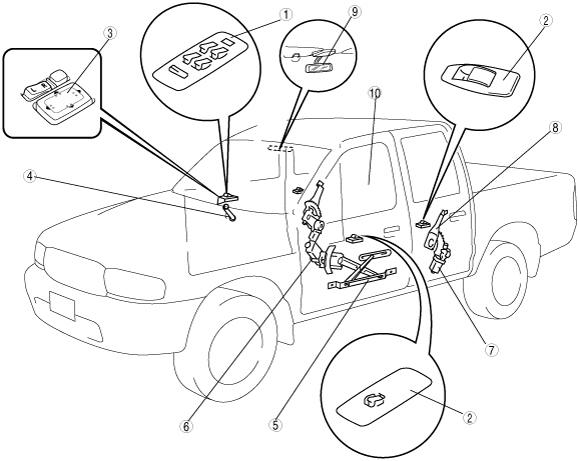

Front view

abs0zw00000298

1	Power window main switch (See POWER WINDOW MAIN SWITCH REMOVAL/INSTALLATION.) (See POWER WINDOW MAIN SWITCH INSPECTION.)
2	Power window subswitch (See POWER WINDOW SUBSWITCH REMOVAL/INSTALLATION.) (See POWER WINDOW SUBSWITCH INSPECTION.)
3	Power outer mirror switch (See POWER OUTER MIRROR SWITCH REMOVAL/INSTALLATION.) (See POWER OUTER MIRROR SWITCH INSPECTION.)
4	Regulator handle (See REGULATOR HANDLE REMOVAL.) (See REGULATOR HANDLE INSTALLATION.)
5	Front window regulator (See FRONT POWER WINDOW REGULATOR REMOVAL/INSTALLATION.) (See FRONT MANUAL WINDOW REGULATOR REMOVAL/INSTALLATION.)
6	Front power window motor (See FRONT POWER WINDOW MOTOR REMOVAL/INSTALLATION.) (See POWER WINDOW MOTOR INSPECTION.)
7	Rear power window motor (See REAR POWER WINDOW MOTOR REMOVAL/INSTALLATION.) (See POWER WINDOW MOTOR INSPECTION.)
8	Rear window regulator (See REAR DOOR GLASS AND REAR WINDOW REGULATOR REMOVAL/INSTALLATION.)
9	Rearview mirror (See REARVIEW MIRROR REMOVAL/INSTALLATION.)
10	Front door glass (See FRONT DOOR GLASS REMOVAL/INSTALLATION.)

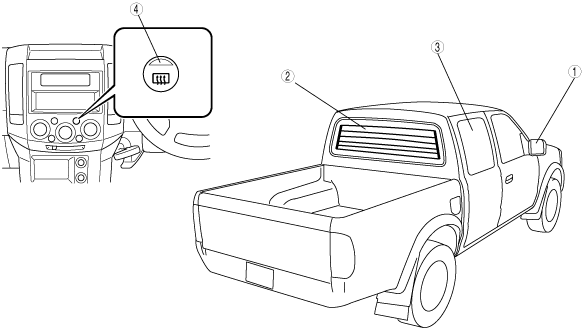

Rear view

absggw00001890

1	Outer mirror (See OUTER MIRROR REMOVAL/INSTALLATION.) (See OUTER MIRROR GLASS REMOVAL/INSTALLATION.) (See POWER OUTER MIRROR INSPECTION.)
2	Rear window glass (See REAR WINDOW GLASS REMOVAL.) (See REAR WINDOW GLASS INSTALLATION.) (See FILAMENT INSPECTION.) (See FILAMENT REPAIR.)
3	Rear quarter window glass (Freestyle cab) (See REAR QUARTER WINDOW GLASS REMOVAL/INSTALLATION.)
4	Rear window defroster switch (See REAR WINDOW DEFROSTER SWITCH REMOVAL/INSTALLATION.)
