1
|
VERIFY FREEZE FRAME DATA HAS BEEN RECORDED
• Has the FREEZE FRAME DATA been recorded?
|
Yes
|
Go to the next step.
|
|
No
|
Record FREEZE FRAME DATA on repair order, then go to the next step.
|
|
2
|
VERIFY RELATED REPAIR INFORMATION AVAILABILITY
• Verify related service repair information availability.
• Is any related repair information available?
|
Yes
|
Perform repair or diagnosis according to available repair information.
• If vehicle is not repaired, go to the next step.
|
|
No
|
Go to the next step.
|
|
3
|
VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT?
• Connect the M-MDS to the DLC-2.
• Clear the DTC from the PCM memory using the M-MDS.
• Run the vehicle under the FREEZE FRAME DATA stored condition.
• Is the same DTC present?
|
Yes
|
Go to the next step.
|
|
No
|
Intermittent concern exists.
Perform the “INTERMITTENT CONCERNS TROUBLESHOOTING”.
|
|
4
|

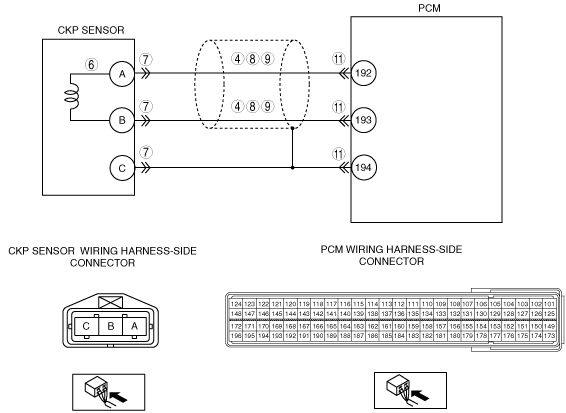

INSPECT CKP CIRCUIT FOR SHORT TO POWER SUPPLY
• Turn the engine switch off.
• Disconnect the CKP sensor connector.
• Turn the engine switch to the ON position. (Engine off).
• Measure the voltage between the following terminals (wiring harness-side):
-
― CKP sensor terminal A and body ground
― CKP sensor terminal B and body ground
• Is the voltage B+?
|
Yes
|
Repair or replace the wiring harness, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
5
|
VERIFY CKP SENSOR INSTALLATION CONDITION
• Inspect for CKP sensor looseness.
• Is CKP sensor loosen?
|
Yes
|
Retighten the CKP sensor installation bolt, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
6
|
INSPECT CKP SENSOR
• Turn the engine switch off.
• Inspect the CKP sensor.
• Is the CKP sensor normal?
|
Yes
|
Go to the next step.
|
|
No
|
Replace the CKP sensor, then go to Step 12.
|
|
7
|
INSPECT CKP SENSOR CONNECTOR FOR POOR CONNECTION
• Turn the engine switch off.
• Verify that the CKP sensor connector is connected securely.
• Is the connector normal?
|
Yes
|
Go to the next step.
|
|
No
|
Reconnect the connector, then go to Step 12.
|
|
8
|
INSPECT CKP CIRCUIT FOR SHORT TO GROUND
• Turn the engine switch off.
• Disconnect the PCM connector.
• Inspect for continuity the between the following terminals:
-
― CKP sensor connector terminal A (wiring harness-side) and body ground
― CKP sensor connector terminal B (wiring harness-side) and body ground
• Is there continuity?
|
Yes
|
Repair or replace the wiring harness, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
9
|
INSPECT CKP CIRCUIT FOR OPEN CIRCUIT
• Turn the engine switch off.
• Inspect for continuity between the following terminals:
-
― CKP sensor terminal A (wiring harness-side) and PCM terminal 192 (wiring harness-side)
― CKP sensor terminal B (wiring harness-side) and PCM terminal 193 (wiring harness-side)
• Is there continuity?
|
Yes
|
Go to the next step.
|
|
No
|
Repair or replace the wiring harness, then go to Step 12.
|
|
10
|
INSPECT DUAL-MASS FLYWHEEL
• Inspect the dual-mass flywheel for damage and/or cracks.
• Is there any malfunction?
|
Yes
|
Replace the dual-mass flywheel, then go to Step 12.
|
|
No
|
Go to the next step.
|
|
11
|
INSPECT PCM CONNECTOR FOR POOR CONNECTION
• Turn the engine switch off.
• Disconnect the PCM connector.
• Inspect for poor connection (such as damaged/pulled-out terminals, corrosion).
• Is there any malfunction?
|
Yes
|
Repair the terminal, then go to the next step.
|
|
No
|
Go to the next step.
|
|
12
|
VERIFY THAT DTC P0335 TROUBLESHOOTING IS COMPLETED
• Turn the engine switch off.
• Make sure to reconnect all disconnected connectors.
• Turn the engine switch to the ON position (Engine off).
• Clear the DTC from the memory using the M-MDS.
• Run the vehicle under the FREEZE FRAME DATA stored condition.
• Is the same DTC present?
|
Yes
|
Replace the PCM, then go to the next step.
|
|
No
|
Go to the next step.
|
|
13
|
VERIFY AFTER REPAIR PROCEDURE
• Perform the “After Repair Procedure“.
• Are any DTCs present?
|
Yes
|
Go to the applicable DTC inspection.
|
|
No
|
DTC troubleshooting completed.
|
