DTC P0699 [WL-C, WE-C (Thailand, General (L.H.D. R.H.D.) specs.)]

id0102b0956300

DTC P0699

EGR valve position sensor 5 V circuit high input

DETECTION CONDITION

•  The PCM monitors the EGR position sensor 5 V circuit. If the EGR position sensor power voltage is higher than 5.1 V, the PCM determines that there is a EGR position sensor 5 V circuit malfunction.

POSSIBLE CAUSE

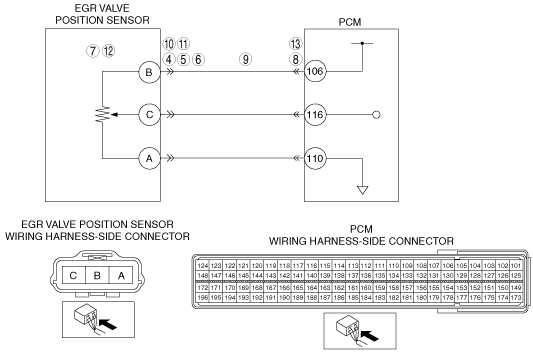

•  Short to power supply between EGR position sensor connector terminal B and PCM terminal 108

•  Open circuit in wiring harness between EGR position sensor connector terminal B and PCM terminal 108

•  EGR position sensor malfunction

•  PCM malfunction

DTC P0699	EGR valve position sensor 5 V circuit high input
DETECTION CONDITION	• The PCM monitors the EGR position sensor 5 V circuit. If the EGR position sensor power voltage is higher than 5.1 V, the PCM determines that there is a EGR position sensor 5 V circuit malfunction.
POSSIBLE CAUSE	• Short to power supply between EGR position sensor connector terminal B and PCM terminal 108 • Open circuit in wiring harness between EGR position sensor connector terminal B and PCM terminal 108 • EGR position sensor malfunction • PCM malfunction

Diagnostic procedure

STEP	INSPECTION		ACTION
1	VERIFY FREEZE FRAME DATA HAS BEEN RECORDED • Has the FREEZE FRAME DATA been recorded?	Yes	Go to the next step.
1		No	Record the FREEZE FRAME DATA on the repair order, then go to the next step.
2	VERIFY RELATED REPAIR INFORMATION AVAILABILITY • Verify related service repair information availability. • Is any related repair information available?	Yes	Perform repair or diagnosis according to the available repair information. • If the vehicle is not repaired, go to the next step.
2		No	Go to the next step.
3	VERIFY CURRENT SIGNAL STATUS: IS CONCERN INTERMITTENT OR CONSTANT? • Connect the M-MDS to the DLC-2. • Clear the DTC from the PCM memory using the M-MDS. • Run the vehicle under the FREEZE FRAME DATA stored condition. • Is the same DTC present?	Yes	Go to the next step.
3		No	Intermittent concern exists. Perform the “INTERMITTENT CONCERNS TROUBLESHOOTING”. (See INTERMITTENT CONCERN TROUBLESHOOTING [WL-C, WE-C].)
4	CLASSIFY EGR POSITION SENSOR OPEN CIRCUIT OR SHORT CIRCUIT RELATED MALFUNCTION • Turn the engine switch to the ON position (Engine off). • Measure the voltage between the EGR position sensor connector terminal B and body ground. • Is the voltage 5.1 V or more ?	Yes	Go to step 10
4		No	Go to the next step.
5	INSPECT POOR CONNECTION OF EGR POSITION SENSOR CONNECTOR • Turn the engine switch off. • Disconnect the EGR position sensor connector. • Inspect for poor connection (damaged, pulled-out terminals, corrosion, etc.). • Is there a malfunction?	Yes	Repair or replace the terminals, then go to Step 14.
5		No	Go to the next step.
6	CLASSIFY EGR POSITION SENSOR OR HARNESS RELATED MALFUNCTION • Disconnect the EGR position sensor connector. • Turn the engine switch to the ON position (Engine off). • Measure the voltage between the EGR position sensor connector terminal B and body ground. • Is the voltage 5 V constant voltage ?	Yes	Go to the next step.
6		No	Go to step 8
7	INSPECT EGR POSITION SENSOR • Inspect the EGR position sensor. (See EGR VALVE POSITION SENSOR INSPECTION [WL-C, WE-C].) • Is there any malfunction?	Yes	Replace the EGR position sensor, then go to Step 14.
7		No	Go to Step 14.
8	INSPECT PCM CONNECTOR FOR POOR CONNECTION • Turn the engine switch off. • Disconnect the PCM connector. • Inspect for poor connection (damaged, pulled-out terminals, corrosion, etc.). • Is there a malfunction?	Yes	Repair or replace the pins, then go to Step 14.
8		No	Go to the next step.
9	INSPECT EGR POSITION SENSOR POWER CIRCUIT FOR OPEN • Turn the engine switch off. • Inspect for continuity between the EGR position sensor position sensor connector terminal B and PCM terminal 108. • Is there continuity?	Yes	Go to Step 14.
9		No	Repair or replace the wiring harness for an open, go to Step 14.
10	INSPECT POOR CONNECTION OF EGR POSITION SENSOR CONNECTOR • Turn the engine switch off. • Disconnect the EGR position sensor connector. • Inspect for poor connection (damaged, pulled-out terminals, corrosion, etc.). • Is there a malfunction?	Yes	Repair or replace the terminals, then go to Step 14.
10		No	Go to the next step.
11	CLASSIFY EGR POSITION SENSOR OR HARNESS RELATED MALFUNCTION • Disconnect the EGR position sensor connector. • Turn the engine switch to the ON position (Engine off). • Measure the voltage between the EGR position sensor connector terminal B and body ground. • Is the voltage 5.1 V or more ?	Yes	Go to the Step 13.
11		No	Go to the next step.
12	INSPECT EGR POSITION SENSOR • Inspect the EGR position sensor. (See EGR VALVE POSITION SENSOR INSPECTION [WL-C, WE-C].) • Is there any malfunction?	Yes	Replace the EGR position sensor, then go to Step 14.
12		No	Go to Step 14.
13	INSPECT PCM CONNECTOR FOR POOR CONNECTION • Turn the engine switch off. • Disconnect the PCM connector. • Inspect for poor connection (damaged, pulled-out terminals, corrosion, etc.). • Is there a malfunction?	Yes	Repair or replace the pins, then go to the next step.
13		No	Repair or replace the wiring harness for a short to power, go to the next step.
14	VERIFY TROUBLESHOOTING OF DTC P0699 COMPLETED • Turn the engine switch off. • Make sure to reconnect all disconnected connectors. • Turn the engine switch to the ON position (Engine off). • Clear the DTC from the memory using the M-MDS. • Run the vehicle under the FREEZE FRAME DATA stored condition. • Is the same DTC present?	Yes	Replace PCM, then go to the next step. (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].)
14		No	Go to the next step.
15	VERIFY AFTER REPAIR PROCEDURE • Perform the “After Repair Procedure“. (See AFTER REPAIR PROCEDURE [WL-C, WE-C (Thailand, General (L.H.D. R.H.D.) specs.)].) • Are any DTCs present?	Yes	Go to the applicable DTC inspection. (See DTC TABLE [WL-C, WE-C (Thailand, General (L.H.D. R.H.D.) specs.)].)
15		No	DTC troubleshooting completed.
