EGR VALVE POSITION SENSOR INSPECTION [WL-C, WE-C]

id0140b7807600

Note

•  Perform the following inspection only when directed.

Resistance Inspection

1.  Disconnect the EGR valve connector.

2.  Measure the resistance between EGR valve connector terminals A and B.

•  If not within the specification, replace the EGR valve.

•  If as specified, carry out the “Circuit Open/Short Inspection”.

absggw00001442

Voltage Inspection

1.  Disconnect the EGR valve connector.

2.  Turn the engine switch to the ON position (Engine off).

3.  Measure the voltage between EGR valve connector terminal C and body ground.

•  If not as specified, perform the “Circuit Open/short Inspection”.

―  If there is no open/short circuit replace the EGR valve. (See EGR SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C].)

absggw00001443

4.  Start the engine and warm up the engine completely.

5.  Measure the voltage between EGR valve connector terminal C and body ground.

•  If not as specified, perform the “Circuit Open/Short inspection”.

―  If there is no open/short circuit replace the EGR valve. (See EGR SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C].)

absggw00001443

CIrcuit Open/Short Inspection

1.  Disconnect the EGR valve connector.

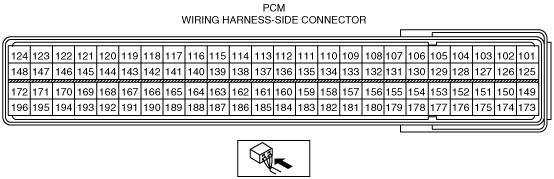

2.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].) (See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].)

3.  Inspect for an open or short circuit in the following wiring harnesses.

•  If there is an open or short circuit, repair or replace wiring harnesses.

absggw00001443

absggw00001444
