ENGINE DISASSEMBLY/ASSEMBLY [G6]

id011095800500

1. Remove the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [G6].)

2. Remove the thermostat. (See THERMOSTAT REMOVAL/INSTALLATION [G6].)

3. Remove the spark plug.

4. Remove the oil pressure switch. (See OIL PRESSURE INSPECTION [G6].)

5. Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [G6].)

6. Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [G6].)

7. Remove the oil filter. (See OIL FILTER REPLACEMENT [G6].)

8. Remove the distributor. (See DISTRIBUTOR REMOVAL/INSTALLATION [G6].)

9. Remove the generator.

10. Disassemble in the order indicated in the table.

11. Assemble in the reverse order of disassembly.

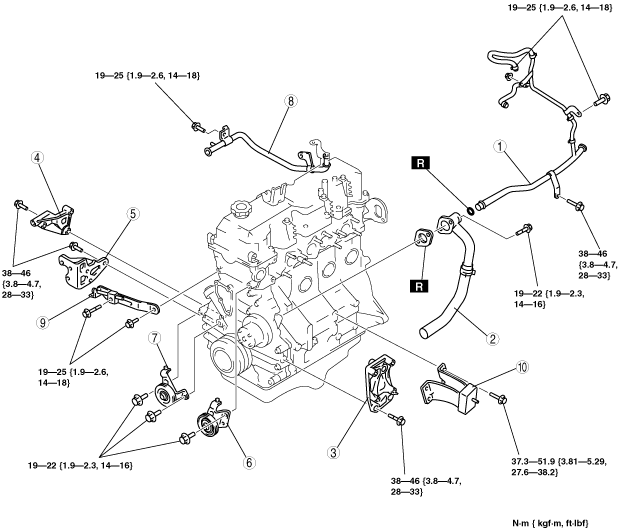

absggw00000085

1

Water bypass pipe

2

Water inlet pipe

3

A/C compressor bracket

4

Generator bracket

5

P/S oil pump bracket

6

A/C idler

7

P/S idler

8

Oil cooler bypass pipe

9

Generator strap

10

Engine mount

1	Water bypass pipe
2	Water inlet pipe
3	A/C compressor bracket
4	Generator bracket
5	P/S oil pump bracket
6	A/C idler
7	P/S idler
8	Oil cooler bypass pipe
9	Generator strap
10	Engine mount
