ENGINE DISASSEMBLY/ASSEMBLY [WL-C, WE-C]

id0110b6800500

1.  Remove the intake-air system. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C].)

2.  Remove the exhaust system. (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C].)

3.  Remove the oil cooler. (See OIL COOLER REMOVAL/INSTALLATION [WL-C, WE-C].)

4.  Disassemble in the order indicated in the table.

5.  Assemble in the reverse order of disassembly.

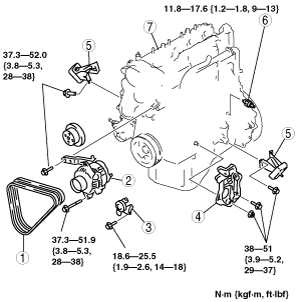

absggw00001622

1	Drive belt
2	Generator (See GENERATOR REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3, WL-C, WE-C].)
3	Idler
4	A/C compressor bracket
5	Engine mount
6	Oil pressure switch (See OIL PRESSURE INSPECTION [WL-C, WE-C].)
7	Water pump pulley
