ROCKER ARM REMOVAL/INSTALLATION [WL-C, WE-C]

id0110b6804600

Caution

•  Removing the camshaft under load can break the camshaft. When removing the camshaft, be sure to prevent the camshaft from pressing down the rocker arm. (See VALVE CLEARANCE ADJUSTMENT [WL-C, WE-C].)

1.  Remove the engine cover.

2.  Disconnect the negative battery cable.

3.  Remove the air intake pipe and breather chamber.

4.  Remove the timing belt. (See TIMING BELT REMOVAL/INSTALLATION [WL-C, WE-C].)

5.  Remove the camshaft. (See CYLINDER HEAD GASKET REPLACEMENT [WL-C, WE-C].)

6.  Remove the order indicated in the table.

7.  Install in the reverse order of removal.

dbg110bwb93r

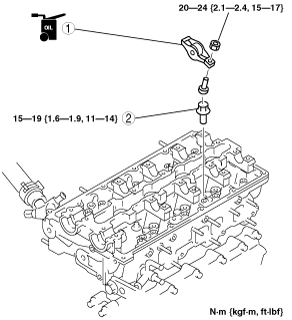

1	Rocker arm (See Rocker Arm Installation Note.)
2	Pivot (See Pivot Installation Note.)

Pivot Installation Note

1.  Apply adhesive to the thread of the pivot.

Rocker Arm Installation Note

1.  If a new rocker arm is used, set dimension A as follows.

dbg110bwb92r
