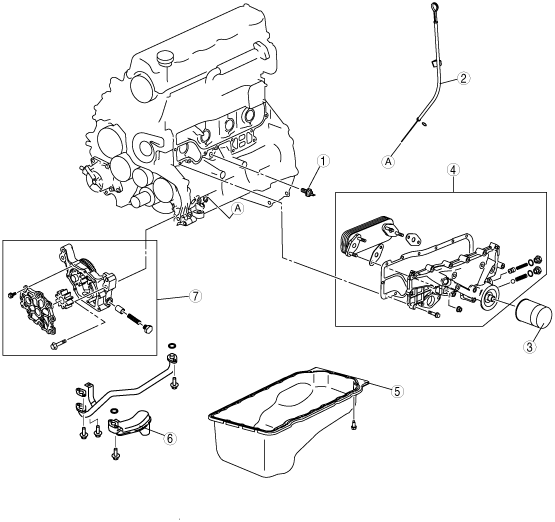

LUBRICATION SYSTEM LOCATION INDEX [WLT-1, WLT-2, WL-3]

id011180800100

absggw00001600

1	Oil pressure switch (See OIL PRESSURE INSPECTION [WLT-1, WLT-2, WL-3].)
2	Oil level gauge (See ENGINE OIL LEVEL INSPECTION [WLT-1, WLT-2, WL-3].) (See ENGINE OIL REPLACEMENT [WLT-1, WLT-2, WL-3].)
3	Oil filter (See OIL FILTER REPLACEMENT [WLT-1, WLT-2, WL-3].)
4	Oil cooler (See OIL COOLER REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].) (See OIL COOLER BODY INSPECTION [WLT-1, WLT-2, WL-3].)
5	Oil pan (See OIL PAN REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].)
6	Oil strainer (See OIL PUMP REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].)
7	Oil pump component (See OIL PUMP REMOVAL/INSTALLATION [WLT-1, WLT-2, WL-3].) (See OIL PUMP INSPECTION [WLT-1, WLT-2, WL-3].)
