INTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WLT-1, WLT-2]

id011396801900

Warning

•  A hot engine and intake-air system can cause severe burns. Turn off the engine and wait until they are cool before removing the intake-air system.

1.  Disconnect the negative battery cable.

2.  Remove the front mud guard. (See FRONT FENDER PANEL REMOVAL/INSTALLATION.)

3.  Remove the injection pipe. (See INJECTION NOZZLE REMOVAL/INSTALLATION [WLT-1, WLT-2].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

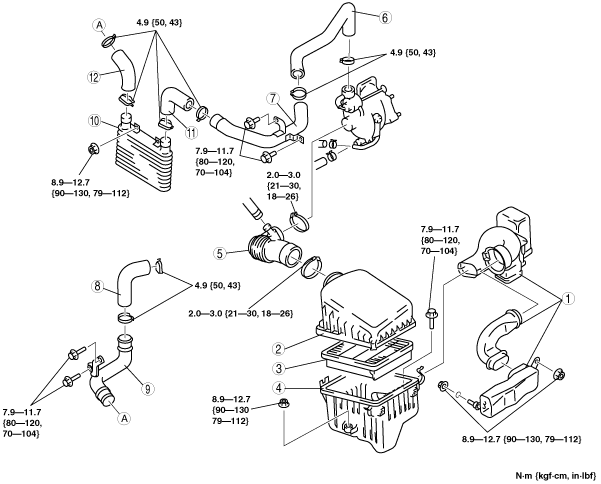

Step 1

absggw00000308

1	Fresh-air duct
2	Air cleaner cover
3	Air cleaner element
4	Air cleaner case
5	Air intake hose
6	Turbocharger air outlet hose
7	Turbocharger air outlet pipe
8	Charge air cooler air outlet hose
9	Charge air cooler air outlet pipe
10	Charge air cooler
11	Charge air cooler inlet hose
12	Charge air cooler outlet hose

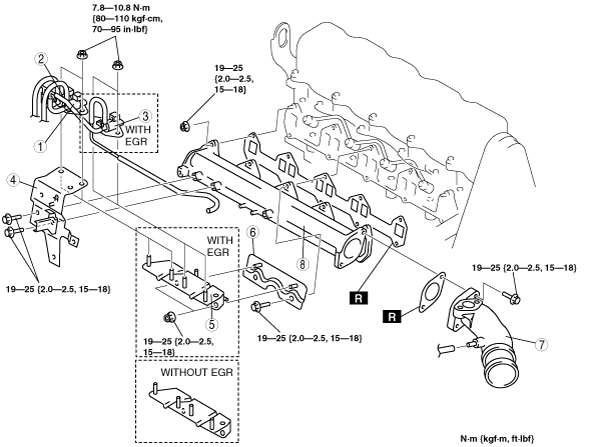

Step 2

absggw00000309

1	FICD solenoid valve No.1
2	FICD solenoid valve No.2
3	EGR control solenoid valve
4	Bracket No.1
5	Bracket No.2
6	Bracket No.3
7	Air intake pipe (See Air Intake Pipe Removal Note)
8	Intake manifold

Air Intake Pipe Removal Note

1.  Remove the EGR valve and EGR pipe before removing the air intake pipe. (See EGR SYSTEM REMOVAL/INSTALLATION [WLT-1, WLT-2].)
