FRONT FENDER PANEL REMOVAL/INSTALLATION

id091000801000

1.  Disconnect the negative battery cable.

2.  To remove the bonnet hinges, remove the following parts:

(1)  Radiator grille (See RADIATOR GRILLE REMOVAL/INSTALLATION.)

(2)  Front bumper (See FRONT BUMPER REMOVAL/INSTALLATION.)

(3)  Front combination lights (See FRONT COMBINATION LIGHT REMOVAL/INSTALLATION.)

(4)  Front side turn lights (See FRONT SIDE TURN LIGHT REMOVAL/INSTALLATION.)

(5)  Front over fender (vehicles with front over fender) (See OVER FENDER REMOVAL/INSTALLATION.)

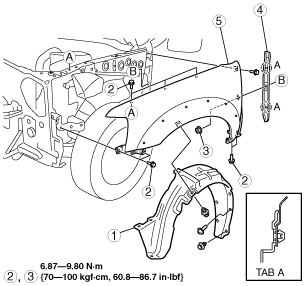

3.  Remove in the order indicated in the table.

dcf910zwb015

1	Mad guard
2	Bolt
3	Nut
4	Seal plate
5	Front fender panel

4.  Install in the reverse order of removal.
