EMISSION SYSTEM LOCATION INDEX [WL-3]

id0116b5803700

Engine Room Side

dbg116awb301

1	EGR valve (See EGR SYSTEM REMOVAL/INSTALLATION [WL-3].) (See EGR VALVE INSPECTION [WL-3].)
2	EGR cooler (See EGR SYSTEM REMOVAL/INSTALLATION [WL-3].)
3	EGR control solenoid valve (See EGR CONTROL SOLENOID VALVE INSPECTION [WL-3].)
4	EGR solenoid valve (vacuum) (See EGR SOLENOID VALVE (VACUUM) INSPECTION [WL-3].)
5	EGR solenoid valve (vent) (See EGR SOLENOID VALVE (VENT) INSPECTION [WL-3].)
6	Air filter
7	Oxidation catalytic converter (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WL-3].)

Fuel Tank Side

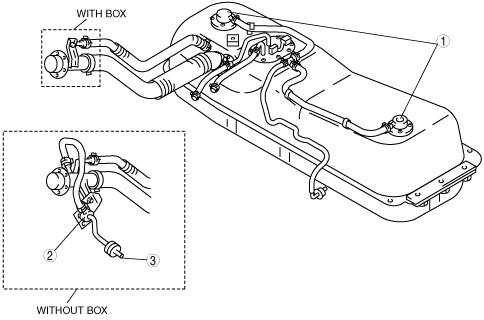

Double cab, Freestyle cab

dbg116awb304

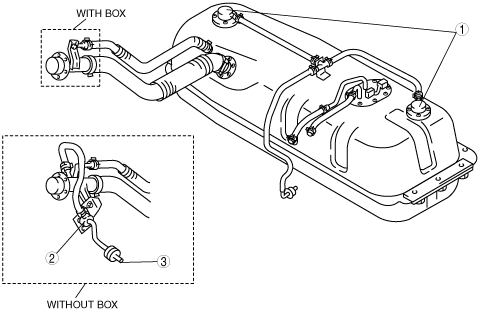

Regular cab

dbg116awb305

1	Rollover valve (See ROLLOVER VALVE INSPECTION [WL-3].)
2	Check valve (two-way) (See CHECK VALVE (TWO-WAY) INSPECTION [WL-3].)
3	Evaporative chamber (See EVAPORATIVE CHAMBER INSPECTION [WL-3].)
