NEUTRAL SWITCH INSPECTION [WL-C, WE-C]

id0140b7800800

Note
•  Perform the following inspection only when directed.

Continuity Inspection

1.  Disconnect the neutral switch connector.

2.  Inspect for continuity between the neutral switch terminals using an ohmmeter.

•  If not as specified, replace the neutral switch.
•  If as specified, carry out the “Circuit Open/Short Inspection”.
absggw00001423

Specification

Neutral switch

Shift lever

Continuity condition
Push the rod
In neutral
Continuity
Except above
Others
No continuity


Circuit Open/Short Inspection

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].) (See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].)

2.  Inspect for an open or short circuit in the following wiring harnesses.

•  If there is an open or short circuit, repair or replace wiring harnesses.

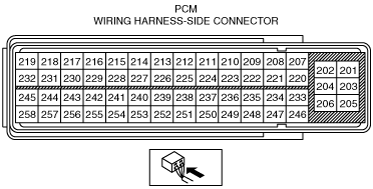

absggw00001424
absggw00001425

Open circuit
•  Power circuit (neutral switch connector terminal A and PCM connector terminal 240)
•  Ground circuit (neutral switch terminal B and ground)
Short circuit
•  Neutral switch connector terminal A and PCM connector terminal 240 short to ground
