FUEL PRESSURE SENSOR INSPECTION [WL-C, WE-C]

id0140b7801300

Note

•  Perform the following inspection only when directed.

Voltage Inspection

1.  Start the engine and warm up the engine completely.

2.  Measure the voltage between fuel pressure sensor terminals A and B using a voltmeter at idle.

•  If not as specified, perform the “Circuit Open/Short Inspection”.

―  If there is no open/short circuit, replace the common rail.

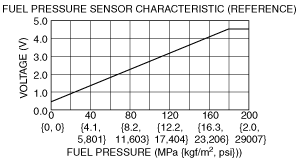

absggw00001426

absggw00001427

3.  Turn off the engine and wait three minutes.

4.  Turn the engine switch to the ON position (Engine off).

5.  Measure the voltage between fuel pressure sensor terminals A and B using a voltmeter.

•  If not as specified, perform the “Circuit Open/Short Inspection”.

―  If there is no open/short circuit, replace the common rail.

Circuit Open/Short Inspection

1.  Disconnect the fuel pressure sensor connector.

2.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].) (See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].)

3.  Inspect for open/short circuit in the following wiring harnesses.

•  If there is open/short circuit, repair or replace wiring harnesses.

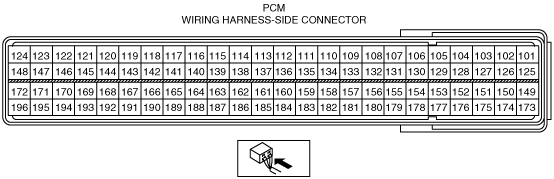

absggw00001426

absggw00001428

Open circuit

•  Power circuit (Fuel pressure sensor connector terminal C and PCM connector terminal 109)

•  Signal circuit (Fuel pressure sensor connector terminal B and PCM connector terminal 140)

•  Ground circuit (Fuel pressure sensor connector terminal A and PCM connector terminal 191)

Short circuit

•  Fuel pressure sensor connector terminal A and PCM connector terminal 191 short to power supply

•  Fuel pressure sensor connector terminal B and PCM connector terminal 140 short to power supply

•  Fuel pressure sensor connector terminal B and PCM connector terminal 140 short to body ground

•  Fuel pressure sensor connector terminal C and PCM connector terminal 109 short to power supply

•  Fuel pressure sensor connector terminal C and PCM connector terminal 109 short to body ground
