CLUTCH PEDAL POSITION (CPP) SWITCH INSPECTION [WL-C, WE-C]

id0140b7801600

Note
•  Perform the following inspection only when directed.

Continuity Inspection

1.  Disconnect the CPP switch connector.

2.  Inspect for continuity between the CPP switch terminals A and B using an ohmmeter.

•  If not as specified, replace the CPP switch.
•  If as specified, carry out the “Circuit Open/Short Inspection”.

Specification

CPP switch

Clutch pedal

Continuity condition
Push the rod
Released
No continuity
Except above
Depressed
Continuity

absggw00001429


Circuit Open/Short Inspection

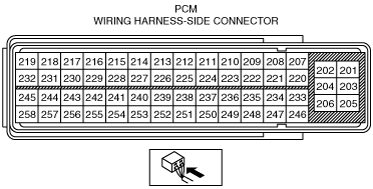

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].) (See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].)

2.  Inspect for an open or short circuit in the following wiring harnesses.

•  If there is an open or short circuit, repair or replace wiring harnesses.
absggw00001430
absggw00001431

Open circuit
•  Power circuit (CPP switch connector terminal A and PCM connector terminal 228)
•  Ground circuit (CPP switch connector terminal B and ground.)
Short circuit
•  CPP switch connector terminal A and PCM connector terminal 228 short to ground.
