ENGINE COOLANT TEMPERATURE (ECT) SENSOR INSPECTION [WL-C, WE-C]

id0140b7802000

Note
•  Perform the following inspection only when directed.

Resistance Inspection

1.  Remove the ECT sensor. (SeeENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION [WL-C, WE-C]

2.  Measure the resistance between the ECT sensor terminals A and B using an ohmmeter.

•  If not as specified, replace the ECT sensor.
•  If as specified, carry out the “Circuit Open/Short Inspection”.

Specification

Engine coolant temperature (°C {°F})

Resistance

(kilohm)
20 {68}
2.37—2.53
80 {176}
0.31—0.32
110 {176}
0.137—0.146

absggw00001432
absggw00001433


Circuit Open/Short Inspection

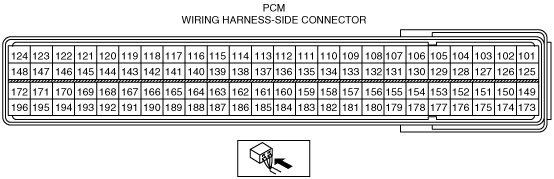

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].) (See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].)

2.  Inspect for an open or short circuit in the following wiring harnesses.

•  If there is an open or short circuit, repair or replace wiring harness.
absggw00001434
absggw00001435

Open circuit
•  Power circuit (ECT sensor connector terminal A and PCM connector terminal 156)
•  Ground circuit (ECT sensor connector terminal B and PCM connector terminal 167)
Short circuit
•  ECT sensor connector terminal A and PCM connector terminal 156 short to ground
•  ECT sensor connector terminal A and PCM connector terminal 167 short to power
