ACCELERATOR PEDAL POSITION (APP) SENSOR INSPECTION [WL-C, WE-C]

id0140b7803200

Note

•  Perform the following inspection only when directed.

Voltage Inspection

1.  Verify that the APP sensor is installed to the accelerator pedal properly.

2.  Visually inspect all accelerator pedal components for looseness.

3.  Check the power circuit voltage.

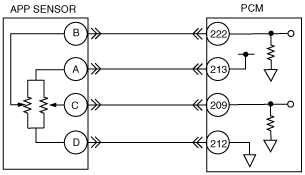

(1)  Verify that the voltage between the APP sensor terminals A (power circuit) and D (ground circuit) is 4.9—5.1 V.

absggw00001436

absggw00001437

4.  Verify that the voltage between the APP sensor terminals B—D, and C—D is as shown below according to the accelerator pedal conditions.

(1)

•  If not as specified, carry out the “Circuit Open/Short Inspection.”

―   If there is no open/short circuit, replace the APP sensor.(SeeINTAKE-AIR SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C]

Specification (Reference)

Accelerator pedal condition	Output voltage (V)
Fully released	0.4—0.8
Gradually depressed	Increases linearly
Fully depressed	3.4—3.8

absggw00001437

Circuit Open/Short Inspection

1.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].) (See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].)

2.  Disconnect the APP sensor connector.

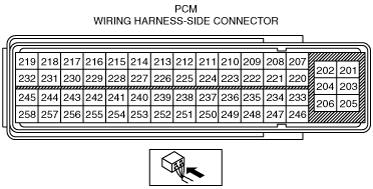

3.  Inspect for an open or short circuit in the following wiring harnesses.

•  If there is an open or short circuit, repair or replace wiring harnesses.

absggw00001437

absggw00001438
