IDLE SWITCH INSPECTION [WL-C, WE-C]

id0140b7810200


Continuity Inspection

Note
•  Perform the following inspection only when directed.

1.  Disconnect the idle switch connector.

2.  Inspect continuity between the idle switch terminals A and B using an ohmmeter.

•  If not as specified, replace the idle switch.
―   If as specified, carry out the “Circuit Open/Short Inspection”.

Specification

Idle switch

Accelerator pedal

Continuity condition
Push the rod
Released
Continuity
Except above
Depressed
No continuity

absggw00001449


Circuit open/short inspection

1.  Disconnect the idle switch connector.

2.  Disconnect the PCM connector. (See PCM REMOVAL/INSTALLATION [WL-C, WE-C].) (See PCM REMOVAL/INSTALLATION (U.K. Specs.) [WL-C, WE-C].)

3.  Inspect for an open or short circuit in the following wiring harnesses.

•  If there is an open or short circuit, repair or replace wiring harnesses.
absggw00001450

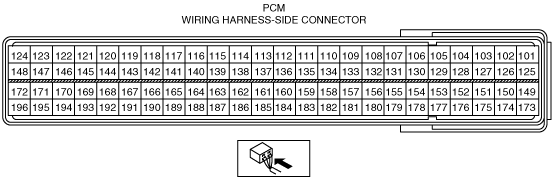

absggw00001451

Open circuit
•  Power circuit (idle switch connector terminal A and PCM connector terminal 161)
•  Ground circuit (idle switch connector terminal B and ground.)
Short circuit
•  Idle switch connector terminal A and PCM connector terminal 161 short to ground
