DTC B1484
id040200805400
|
DTC
|
B1484
|
Brake switch system
|
|
|
DETECTION CONDITION
|

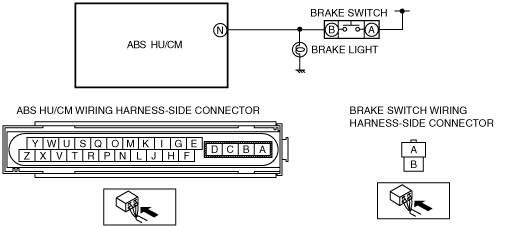

• Open circuit in the wiring harness between the ABS HU/CM terminal and the brake switch terminal
|
||
|
POSSIBLE CAUSE
|
• Brake switch malfunction
• Open circuit in the wiring harness between the ABS HU/CM terminal N and the brake switch terminal
|
||
 |
|||
Diagnostic procedure
|
STEP |
INSPECTION |
ACTION |
|
|---|---|---|---|
|
1
|
INSPECT WIRING HARNESS BETWEEN ABS HU/CM AND BRAKE SWITCH FOR CONTINUITY
• Turn the ignition switch or engine switch off.
• Disconnect the ABS HU/CM connector.
• Is B+ correctly applied to ABS HU/CM connector terminal N when brake pedal depressed?
|
Yes
|
Go to Step 3.
|
|
No
|
Go to the next step.
|
||
|
2
|
INSPECT BRAKE SWITCH
• Inspect the brake switch.
(See BRAKE SWITCH INSPECTION.)
• Is the brake switch normal?
|
Yes
|
Repair or replace the wiring harness for open circuit between ABS HU/CM and brake switch, then go to the next step.
|
|
No
|
Replace the brake switch, then go to the next step.
|
||
|
3
|
VERIFY TROUBLESHOOTING COMPLETED
• Make sure to reconnect all disconnected connectors.
• Clear the DTC from the memory.
(See ON-BOARD DIAGNOSIS.)
• Are the same DTCs present?
|
Yes
|
Replace the ABS HU/CM, then go to the next step.
|
|
No
|
Go to the next step.
|
||
|
4
|
VERIFY AFTER REPAIR PROCEDURE
• Are any other DTC present?
|
Yes
|
Go to the applicable DTC inspection.
(See ON-BOARD DIAGNOSIS.)
|
|
No
|
DTC troubleshooting completed.
|
||
