PARKING BRAKE LEVER REMOVAL/INSTALLATION

id041200801600

1.  Remove the lower panel. (See LOWER PANEL REMOVAL/INSTALLATION.)

2.  Remove in the order indicated in the table.

3.  Install in the reverse order of removal.

4.  After installation, inspect the parking brake lever stroke. (See PARKING BRAKE LEVER INSPECTION.)

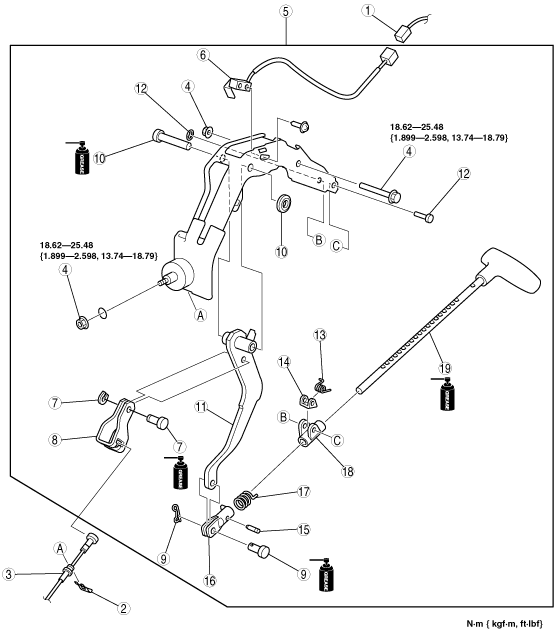

absggw00001199

1	Parking brake switch connector
2	Clip
3	Front parking brake cable (See PARKING BRAKE CABLE REMOVAL/INSTALLATION [F2, G6 (L.H.D. 4x2)].) (See PARKING BRAKE CABLE REMOVAL/INSTALLATION [G6 (4x4)].) (See PARKING BRAKE CABLE REMOVAL/INSTALLATION [G6 (R.H.D. 4x2), WLT-1 (4x2), WLT-2 (4x2), WL-3].) (See PARKING BRAKE CABLE REMOVAL/INSTALLATION [WLT-1 (4x4), WLT-2 (4x4)].) (See PARKING BRAKE CABLE REMOVAL/INSTALLATION [WL-C (4x2 EXCEPT HIGH CLEARANCE MODEL)].) (See PARKING BRAKE CABLE REMOVAL/INSTALLATION [WL-C (HIGH CLEARANCE MODEL, 4X4), WE-C].)
4	Bolt and nut
5	Parking brake lever component
6	Parking brake switch
7	Clip and joint pin
8	Cable connector
9	Clip and joint pin
10	Clip and joint pin
11	Lever
12	Clip and joint pin
13	Spring
14	Ratchet pawl
15	Stopper
16	Fork joint
17	Spring
18	Guide
19	Rod
