TRANSMISSION REMOVAL/INSTALLATION [M15M-D]

id051110246700

1.  Disconnect the negative battery cable.

2.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION.)

3.  Remove the starter. (See STARTER REMOVAL/INSTALLATION [F2].)

4.  Remove in the order indicated in the table.

5.  Install in the reverse order of removal.

6.  Perform the "INSPECTION AFTER TRANSMISSION INSTALLATION", and verify that there is no abnormality.

(See INSPECTION AFTER TRANSMISSION INSTALLATION [M15M-D].)

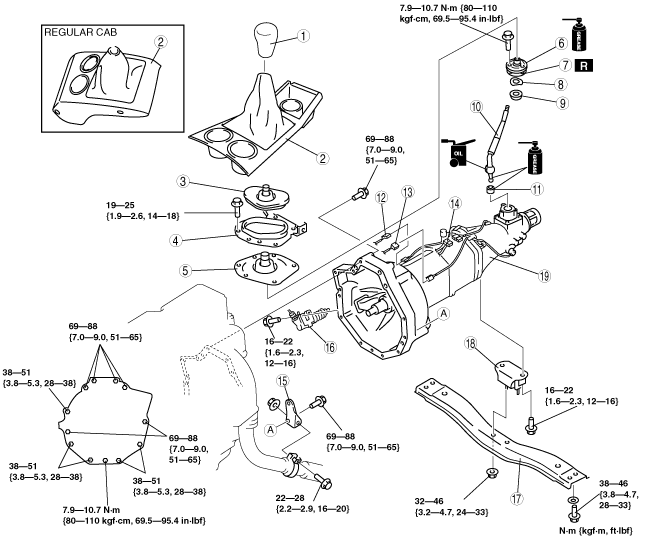

arnffw00001257

1	Shift lever knob
2	Console (regular cab) or boot panel (except regular cab) (See CONSOLE REMOVAL/INSTALLATION.)
3	Dust boot
4	Change boot upper plate
5	Boot
6	Dust boot
7	Gasket
8	Wave washer
9	Change bush
10	Change lever
11	Change seat
12	VSS connector
13	Back-up light switch connector
14	Neutral switch connector
15	Front pipe bracket
16	Clutch release cylinder
17	Crossmember (See Crossmember Removal Note.)
18	Transmission lower mount
19	Transmission (See Transmission Removal Note.) (See Transmission Installation Note.)

Crossmember Removal Note

1.  Securely support the transmission on a transmission jack, then remove the crossmember.

Transmission Removal Note

1.  Maintain the stability of the transmission while removing it.

arnffw00001258

Transmission Installation Note

Warning

•  A transmission that is not secunrely supported on a transmission jack is dangerous.It can slip or fall, causing serious injury.Never work without the transmission jack until crossmember installation is finished.

1.  Place the transmission on a transmission jack.

2.  Maintain the stability of the transmission while installing it.

arnffw00001258
