OIL SEAL (EXTENSION HOUSING) REPLACEMENT [5R55S]

id0513c1710000

Removal (4x2)

1.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION [5AT].)

2.  Using a flathead screwdriver, lift up the extension housing seal plate area.

absggw00001948

3.  Using the SST, remove the extension housing seal.

absggw00001949

Removal (4x4)

1.  Remove the transfer case. (See TRANSFER CASE REMOVAL/INSTALLATION [5R55S].)

2.  Using a flathead screwdriver, remove the extension housing seal.

absggw00001943

Installation (4x2)

1.  Using the SST, install the extension housing seal.

absggw00001950

Note

•  Make sure the extension housing seal is correctly installed onto the SST and the garter spring is in the correct position.

2.  Install the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION [5AT].)

3.   Inspect the ATF level for leakage. (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION [5R55S].)

Installation (4x4)

1.  Using the SST, install the extension housing seal.

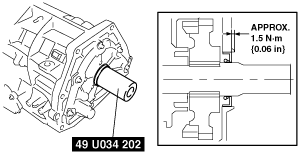

absggw00001953

Note

•  Make sure the extension housing seal is correctly installed onto the SST and the garter spring is in the correct position.

2.  Install the transfer case. (See TRANSFER CASE REMOVAL/INSTALLATION [5R55S].)

3.   Inspect the ATF level for leakage. (See AUTOMATIC TRANSMISSION FLUID (ATF) INSPECTION [5R55S].)
