TRANSFER CASE REMOVAL/INSTALLATION [5R55S]

id0316c1816400

1.  Disconnect the negative battery cable.

2.  Remove the transfer case under cover. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [5R55S].)

3.  Remove the oxidation catalytic converter (See EXHAUST SYSTEM REMOVAL/INSTALLATION [WL-C, WE-C].)

4.  Remove the propeller shaft. (See PROPELLER SHAFT REMOVAL/INSTALLATION [5AT].)

5.  Remove the crossmember and transmission mount rubber. (See AUTOMATIC TRANSMISSION REMOVAL/INSTALLATION [5R55S])

6.  Lower the transmission slightly.

7.  Remove in the order indicated in the table.

8.  Install in the reverse order of removal.

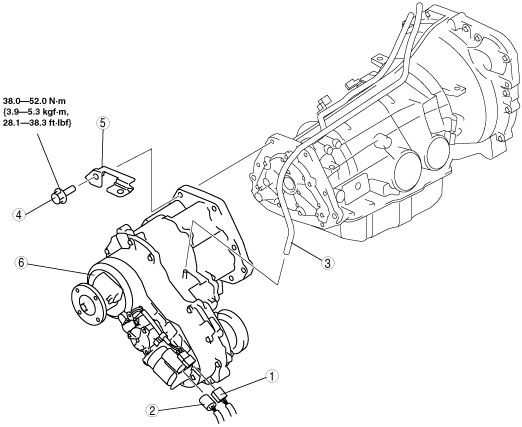

arnffw00001916

1	Speed sensor connector
2	Motor connector
3	Breather hose
4	Bolt
5	Bracket
6	Transfer case
