CLIMATE CONTROL UNIT INSTALLATION

id074000801900

Without Heater

1.  Connect the climate control unit connectors.

2.  Insert the climate control unit until each clip clicks.

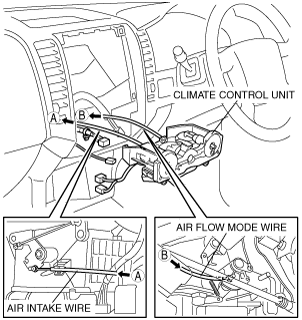

dbg740zwb035

3.  Adjust the climate control unit wire. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT.)

4.  Install the center panel unit or audio unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION [TYPE A].) (See AUDIO UNIT REMOVAL/INSTALLATION [TYPE B].)

5.  Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

6.  Connect the negative battery cable.

With Heater

1.  Connect the climate control unit connectors.

2.  Insert the climate control unit until each clip clicks.

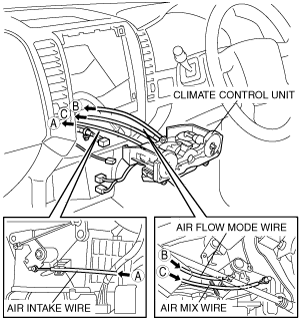

dcf711zw3a11

3.  Adjust the climate control unit wire. (See CLIMATE CONTROL UNIT WIRE ADJUSTMENT.)

4.  Install the center panel module or audio unit. (See CENTER PANEL UNIT REMOVAL/INSTALLATION [TYPE A].) (See AUDIO UNIT REMOVAL/INSTALLATION [TYPE B].)

5.  Install the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION.)

6.  Connect the negative battery cable.
