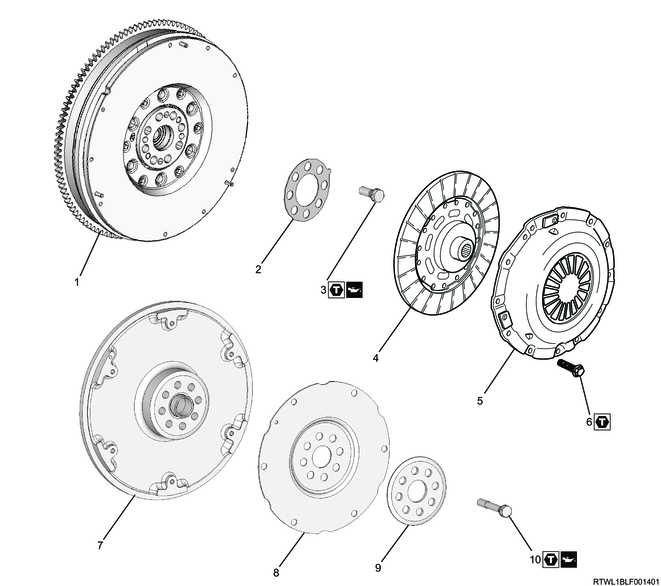

Flywheel installation (4JJ3 with DPD)

Part name

Tightening torque

3-1: 59 N・m { 6.0 kgf・m / 44 lb・ft }

3-2: 60 to 90 °

6: 18 N・m { 1.8 kgf・m / 13 lb・ft }

10-1: 59 N・m { 6.0 kgf・m / 44 lb・ft }

10-2: 60 to 90 °

1. Manual transmission models

1) Install the special tool to the starter installation section of the rear plate.

SST: 5-8840-0214-0 - crankshaft stopper

2) Apply engine oil to the threaded portion of the bolts.

3) Temporarily tighten the washer and flywheel to the crankshaft in the order shown in the diagram.

4) Final tighten the flywheel to the crankshaft in the order shown in the diagram.

Tightening torque: 59 N・m { 6.0 kgf・m / 44 lb・ft } 1st time

Tightening Angle : 60 to 90 ° 2nd time

2. Automatic transmission models

1) Install the special tool to the starter installation section of the rear plate.

SST: 5-8840-0214-0 - crankshaft stopper

2) Temporarily tighten the following parts to the crankshaft.

3) Final tighten the flywheel to the crankshaft in the order shown in the diagram.

Tightening torque: 59 N・m { 6.0 kgf・m / 44 lb・ft } 1st time

Tightening Angle : 60 to 90 ° 2nd time

Refer to "5.Transmission, Transaxle 5E.Clutch System(MVL) Clutch installation".

Refer to "5.Transmission, Transaxle 5B.Automatic(AWR6B45) transmission installation".
