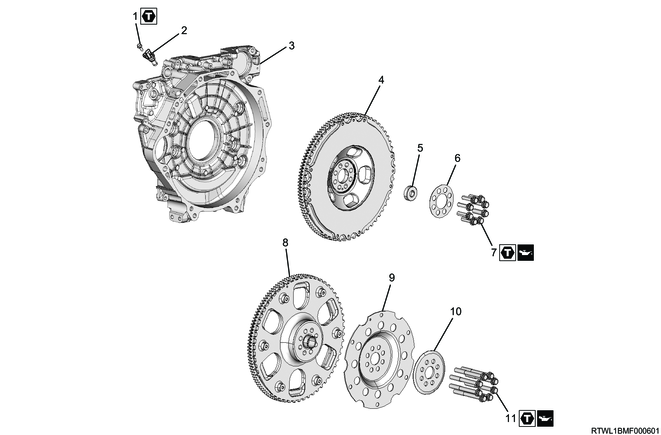

Flywheel removal (RZ4E-TC)

Part name

Tightening torque

1: 5.0 N・m { 0.5 kgf・m / 44 lb・in }

7-1: 40 N・m { 4.1 kgf・m / 30 lb・ft }

7-2: 60 to 90 °

11-1: 40 N・m { 4.1 kgf・m / 30 lb・ft }

11-2: 120 °

11-3: 30 to 60 °

Refer to "5.Transmission, Transaxle 5B.Automatic(AWR6B45) transmission removal".

Refer to "5.Transmission, Transaxle 5E.Clutch System(MVL) Clutch removal".

1) Disconnect the connector from the CKP sensor.

2) Remove the CKP sensor from the flywheel housing.

Legend

1. Manual transmission models

1) Remove the pilot bearing from the flywheel using the special tool.

SST: 5-8840-2000-0 - Pilot bearing remover

SST: 5-8840-0019-0 - Sliding hammer

2) Install the special tool to the starter motor installation section of the flywheel housing.

SST: 5-8840-3174-0 - crankshaft stopper

3) Gradually loosen the flywheel mounting bolts in the order shown in the diagram, and remove the washer and flywheel from the crankshaft.

Legend

2. Automatic transmission models

1) Install the special tool to the starter motor installation section of the flywheel housing.

SST: 5-8840-3174-0 - crankshaft stopper

2) Gradually loosen the flywheel mounting bolts in the order shown in the diagram, and remove the following parts from the crankshaft.

Legend
