SECURITY AND LOCKS LOCATION INDEX

id091400510000

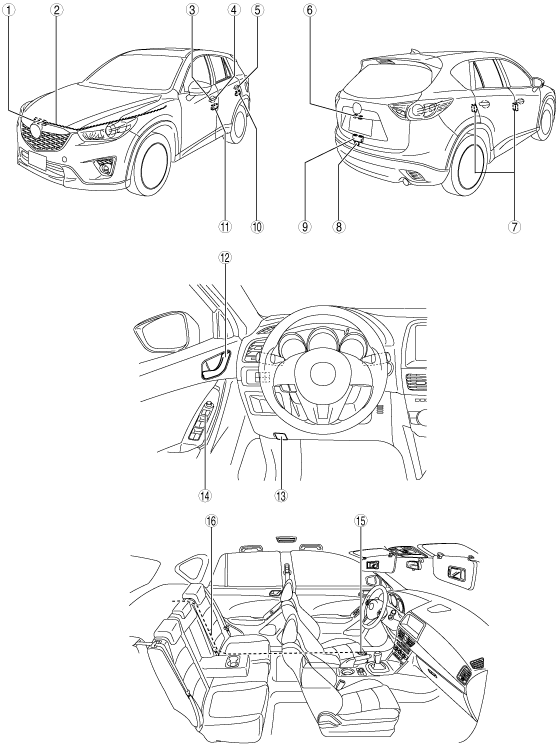

Locks and Openers

ac5jjw00000445

1
Bonnet latch
(See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
2
Bonnet release cable
(See BONNET RELEASE CABLE REMOVAL/INSTALLATION.)
3
Front outer handle
(See FRONT OUTER HANDLE REMOVAL/INSTALLATION.)
4
Front door key cylinder
(See FRONT DOOR KEY CYLINDER REMOVAL/INSTALLATION.)
(See FRONT DOOR KEY CYLINDER SWITCH INSPECTION.)
5
Rear outer handle
(See REAR OUTER HANDLE REMOVAL/INSTALLATION.)
6
Liftgate opener switch
(See LIFTGATE OPENER SWITCH REMOVAL/INSTALLATION.)
(See LIFTGATE OPENER SWITCH INSPECTION.)
7
Door lock striker
(See DOOR LOCK STRIKER REMOVAL/INSTALLATION.)
8
Liftgate lock striker
(See LIFTGATE LOCK STRIKER REMOVAL/INSTALLATION.)
9
Liftgate latch and lock actuator
(See LIFTGATE LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See LIFTGATE LATCH AND LOCK ACTUATOR INSPECTION.)
(See LIFTGATE LOCK ACTUATOR INSPECTION.)
10
Rear door latch and lock actuator
(See REAR DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See REAR DOOR LATCH AND LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LATCH SWITCH INSPECTION.)
(See DOOR LOCK-LINK SWITCH INSPECTION.)
11
Front door latch and lock actuator
(See FRONT DOOR LATCH AND LOCK ACTUATOR REMOVAL/INSTALLATION.)
(See FRONT DOOR LATCH AND LOCK ACTUATOR INSPECTION.)
(See FRONT DOOR LOCK ACTUATOR INSPECTION.)
(See REAR DOOR LATCH SWITCH INSPECTION.)
(See DOOR LOCK-LINK SWITCH INSPECTION.)
12
Inner handle
(See INNER HANDLE REMOVAL/INSTALLATION.)
13
Bonnet release lever
(See BONNET LATCH AND RELEASE LEVER REMOVAL/INSTALLATION.)
14
Door lock switch (With door lock switch)
(See DOOR LOCK SWITCH REMOVAL/INSTALLATION.)
(See DOOR LOCK SWITCH INSPECTION.)
15
Fuel-filler lid opener lever
(See FUEL-FILLER LID OPENER AND LEVER REMOVAL/INSTALLATION.)
16
Fuel-filler lid opener cable
(See FUEL-FILLER LID OPENER CABLE REMOVAL/INSTALLATION.)

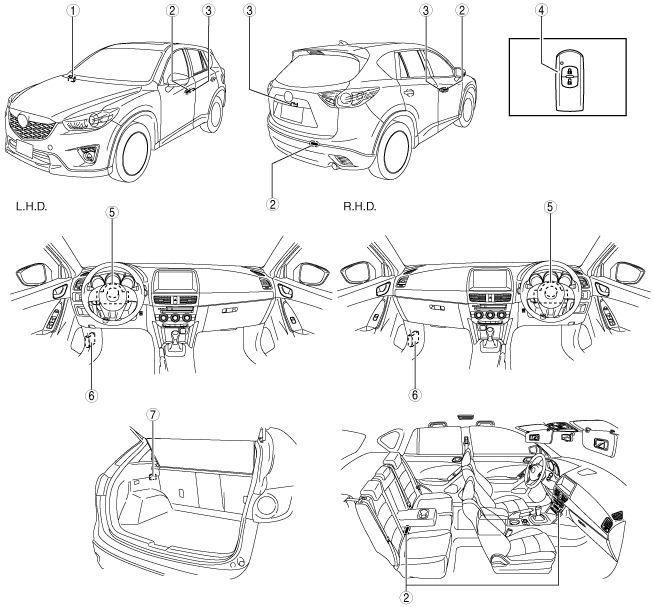

Advanced Keyless Entry System / Push Button Start System / Immobilizer System

ac5wzw00000004

1
Keyless beeper
(See KEYLESS BEEPER REMOVAL/INSTALLATION.)
(See KEYLESS BEEPER INSPECTION.)
2
Keyless antenna
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)
3
Request switch
(See REQUEST SWITCH REMOVAL/INSTALLATION.)
(See REQUEST SWITCH INSPECTION.)
4
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
5
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION.)
(See START STOP UNIT INSPECTION.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
6
LF control unit
(See LF CONTROL UNIT REMOVAL/INSTALLATION.)
(See LF CONTROL UNIT INSPECTION.)
7
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)

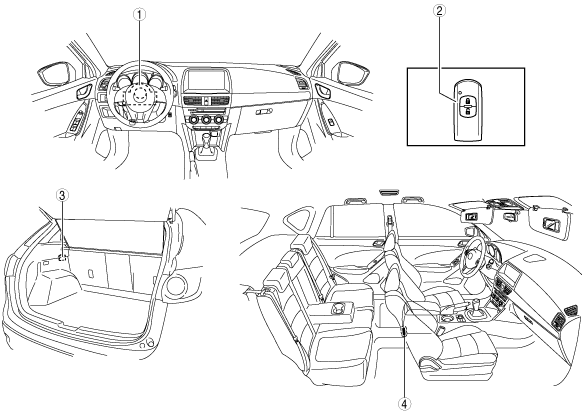

Keyless entry system / Push Button Start System / immobilizer system

ac5wzw00000005

1
Start stop unit
(See START STOP UNIT REMOVAL/INSTALLATION.)
(See START STOP UNIT INSPECTION.)
(See START STOP UNIT CONFIGURATION (USING READ/WRITE FUNCTION).)
(See START STOP UNIT CONFIGURATION (USING AS-BUILT DATA).)
(See SECURITY AND LOCKS PERSONALIZATION FEATURES SETTING PROCEDURE.)
2
Remote transmitter
(See REMOTE TRANSMITTER DISASSEMBLY/ASSEMBLY.)
(See REMOTE TRANSMITTER ID CODE REGISTRATION.)
(See CLEARING REMOTE TRANSMITTER.)
(See REMOTE TRANSMITTER BATTERY VOLTAGE INSPECTION.)
3
Keyless receiver
(See KEYLESS RECEIVER REMOVAL/INSTALLATION.)
(See KEYLESS RECEIVER INSPECTION.)
4
Keyless antenna
(See KEYLESS ANTENNA REMOVAL/INSTALLATION.)


Theft-deterrent System

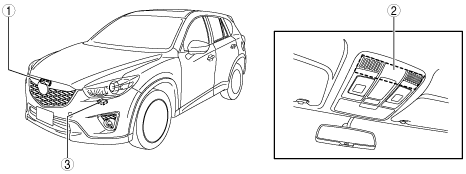

With intruder sensor

ac5wzw00002471

1
Bonnet latch switch
(See BONNET LATCH SWITCH INSPECTION.)
2
Intruder sensor
(See INTRUDER SENSOR REMOVAL/INSTALLATION.)
(See INTRUDER SENSOR INSPECTION.)
3
Theft-deterrent siren
(See THEFT-DETERRENT SIREN REMOVAL/INSTALLATION.)
(See THEFT-DETERRENT SIREN INSPECTION.)

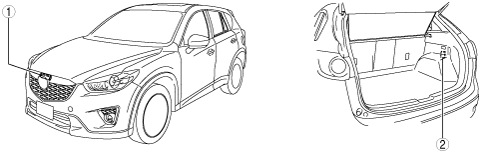

Without intruder sensor

ac5wzw00002472

1
Bonnet latch switch
(See BONNET LATCH SWITCH INSPECTION.)
2
Theft-deterrent horn
(See THEFT-DETERRENT HORN REMOVAL/INSTALLATION.)
(See THEFT-DETERRENT HORN INSPECTION.)
