C-PILLAR TRIM REMOVAL/INSTALLATION

id091700802200

1.  Disconnect the negative battery cable. (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-G 2.0, SKYACTIV-G 2.5 (WITHOUT i-stop)].) (See NEGATIVE BATTERY CABLE DISCONNECTION/CONNECTION [SKYACTIV-D 2.2].)

2.  Remove the following parts:

(1)  Trunk board (See TRUNK BOARD REMOVAL/INSTALLATION.)

(2)  Trunk end trim (See TRUNK END TRIM REMOVAL/INSTALLATION.)

(3)  Rear scuff plate (See REAR SCUFF PLATE REMOVAL/INSTALLATION.)

(4)  Trunk side trim (See TRUNK SIDE TRIM REMOVAL/INSTALLATION.)

(5)  D-pillar trim (See D-PILLAR TRIM REMOVAL/INSTALLATION.)

3.  Partially peel back the seaming welt.

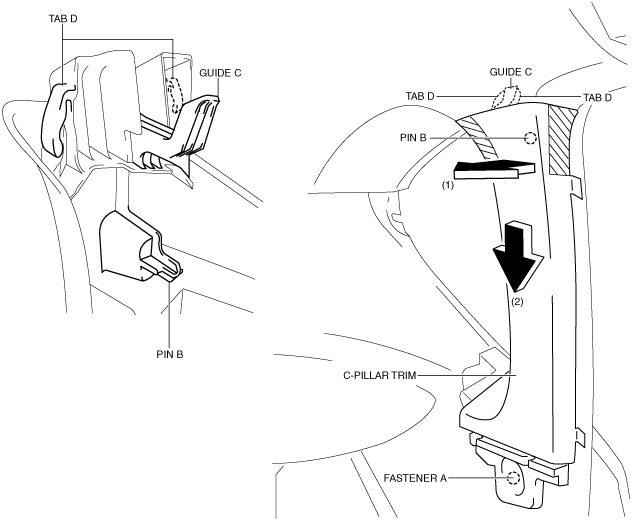

4.  Remove the fastener A.

ac5uuw00001768

5.  Take the shaded area shown in the figure, and pull the C-pillar trim in the direction of the arrow (1) while detaching the pin B.

6.  Remove the C-pillar trim in the direction of the arrow (2) shown in the figure while detaching guide C, tabs D.

Caution

•  If the C-pillar trim is pulled in the direction of the arrow (1) forcefully, guide C may be damaged. Carefully pull the C-pillar trim so as not to damage guide C.

7.  Install in the reverse order of removal.
